190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 22-24

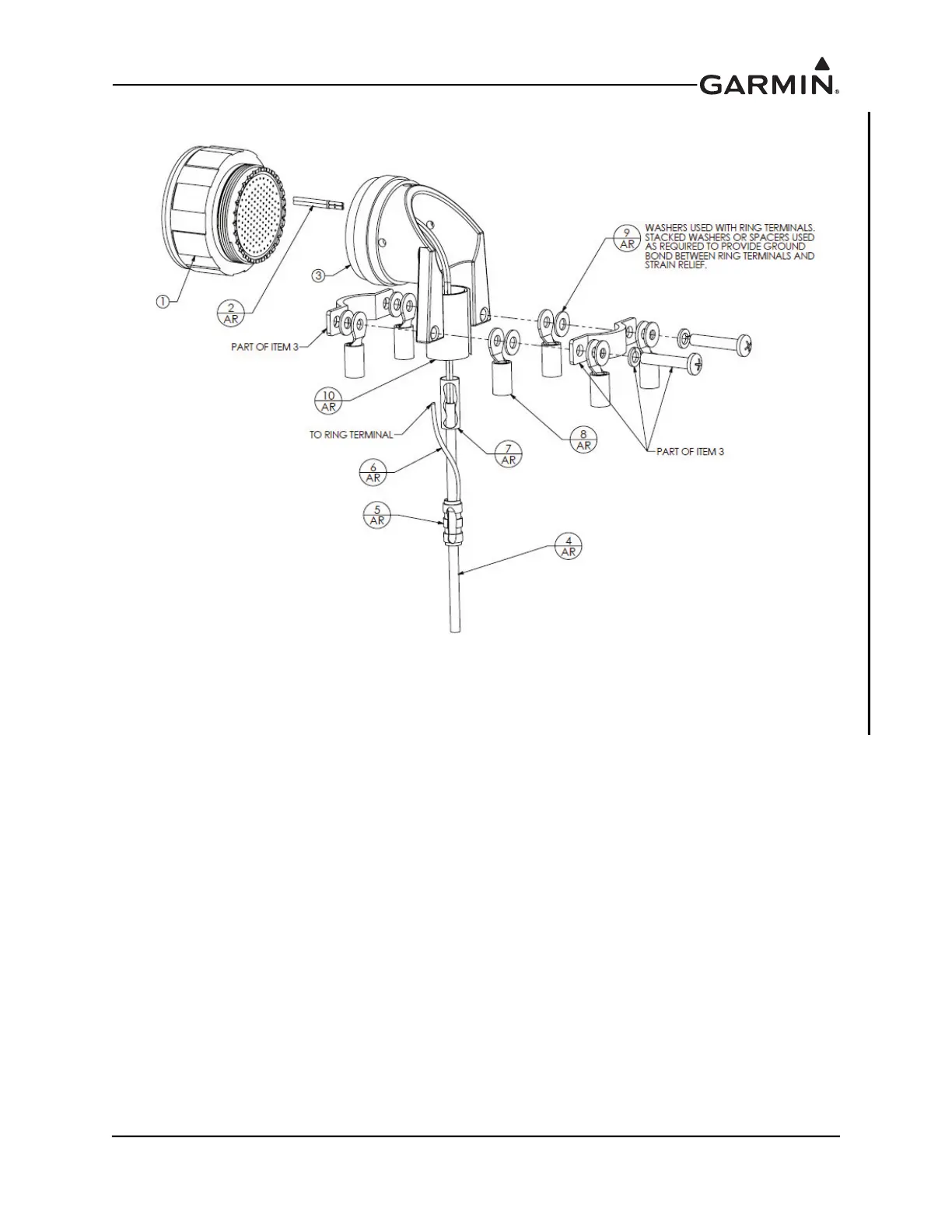

Figure 22-15 Circular Connector with Right Angle Saddle Clamp Strain Relief Install

(D38999/26 connector with AS85049/126S self-locking strain relief shown)

Note: “AR” denotes quantity “As Required” for the particular installation
