190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 24-47

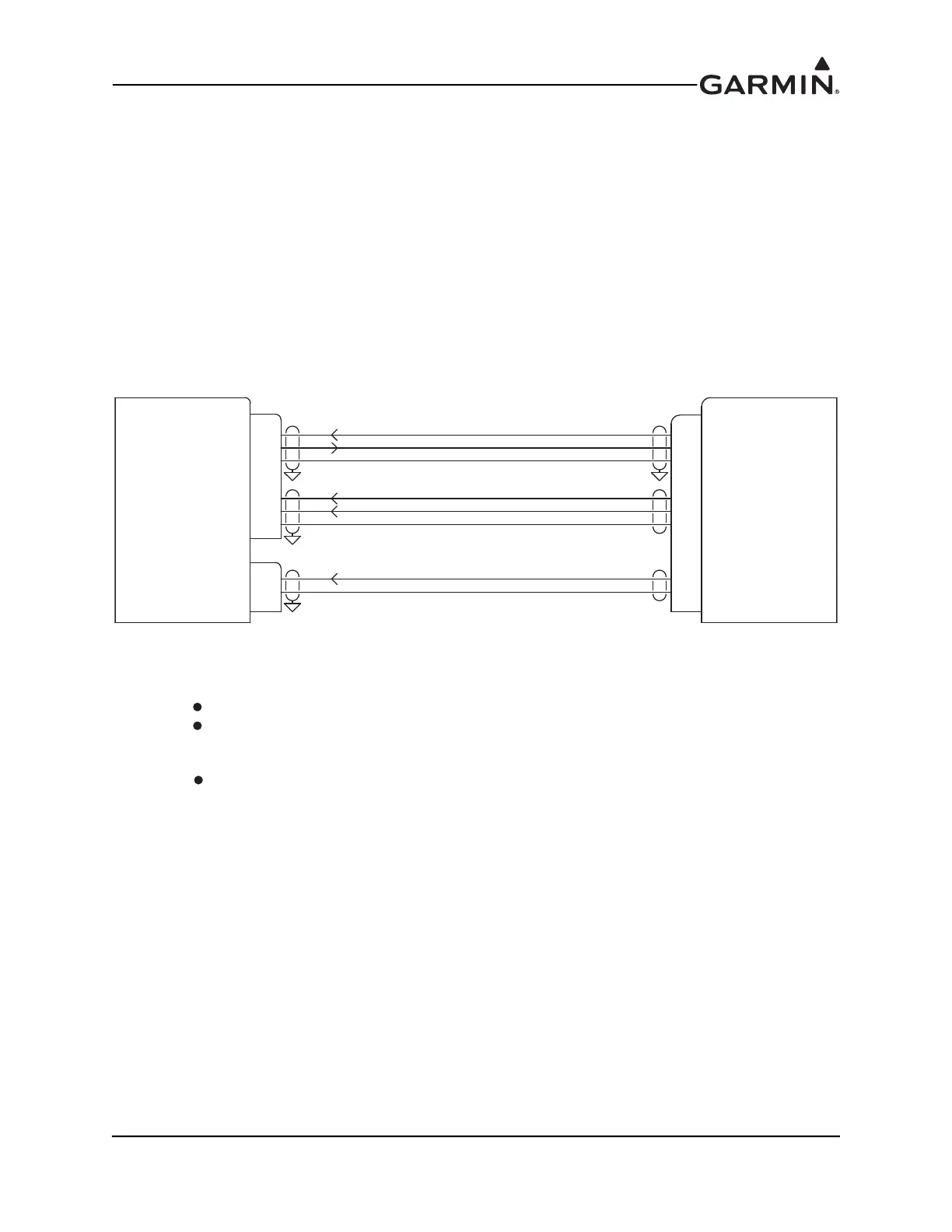

Figure 24-2.27 GDU 4XX Audio to GMA 342/GMA 345 Interconnect/Configuration Example

GDU 4XX

P4X02

STEREO AUDIO OUT LEFT

MONO AUDIO OUT HI

STEREO AUDIO OUT LO

STEREO AUDIO OUT RIGHT19

MONO AUDIO OUT LO18

MUSIC 2 IN RIGHT

GMA 342/GMA 345

MUSIC 2 IN LEFT 26

MUSIC 2 IN LO 28

P3402

ALERT 1 AUDIO IN HI 31

ALERT 1 AUDIO IN LO 32

STEREO AUDIO OUT LO2

P3401

N/C

CONFIGURATION GUIDANCE

1. GDU 4XX

A. ON THE GDU 4XX SOUND CONFIGURATION PAGE

SET THE ALERT SOURCE TO "PFD"

SET THE ALERT OUTPUT TO "MONO ONLY"

B. ON THE GDU 4XX RS-232 CONFIGURATION PAGE

SET THE RS-232 FORMAT TO "GARMIN INSTRUMENT DATA" FOR THE RS-232 PORT

CONNECTED TO THE AUDIO PANEL

MUSIC WIRING FOR

GDU 465/455 ONLY (PFD OR MFD)

MONO ALERT AUDIO CONNECTED TO PFD

RS-232 IN 17

RS-232 OUT 18

SIGNAL GROUND 28

RX-232 RX 1

SIGNAL GROUND

RS-232 TX 148

(ANY AVAILABLE 1-5)
