190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 24-48

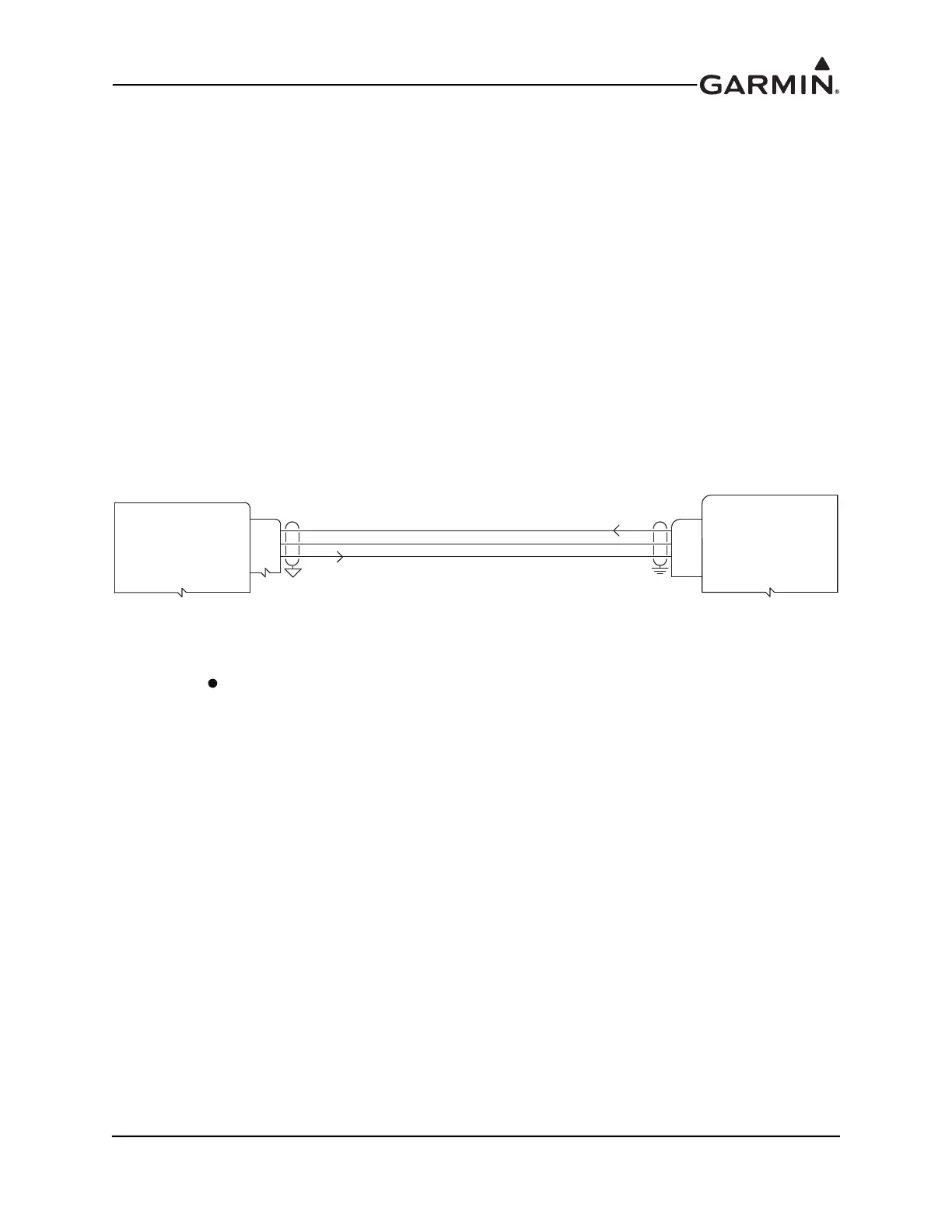

Figure 24-2.28 WX-500/Lightning Detector Interconnect/Configuration Example
SIGNAL GROUNDXX
RS-232 OUTXX
WHT
BLU
RS-232 IN 3
29
SIGNAL GROUND 34
WHT
BLU
P4X02
RS-232 OUT 3 13
ORN
S
RS-232 INXX
ORN
CONFIGURATION GUIDANCE
1. GDU 4XX TO LIGHTNING DETECTOR
A. ON THE GDU 4XX RS-232 CONFIG MODE PAGE
SET CONNECTED RS-232 CHANNEL FORMAT TO "LIGHTNING DETECTOR"
B. CHECK LIGHTNING DETECTOR MANUAL FOR ANY SETUP REQUIRED
GDU 4XX
WX-500 OR OTHER
LIGHTNING DETECTOR
