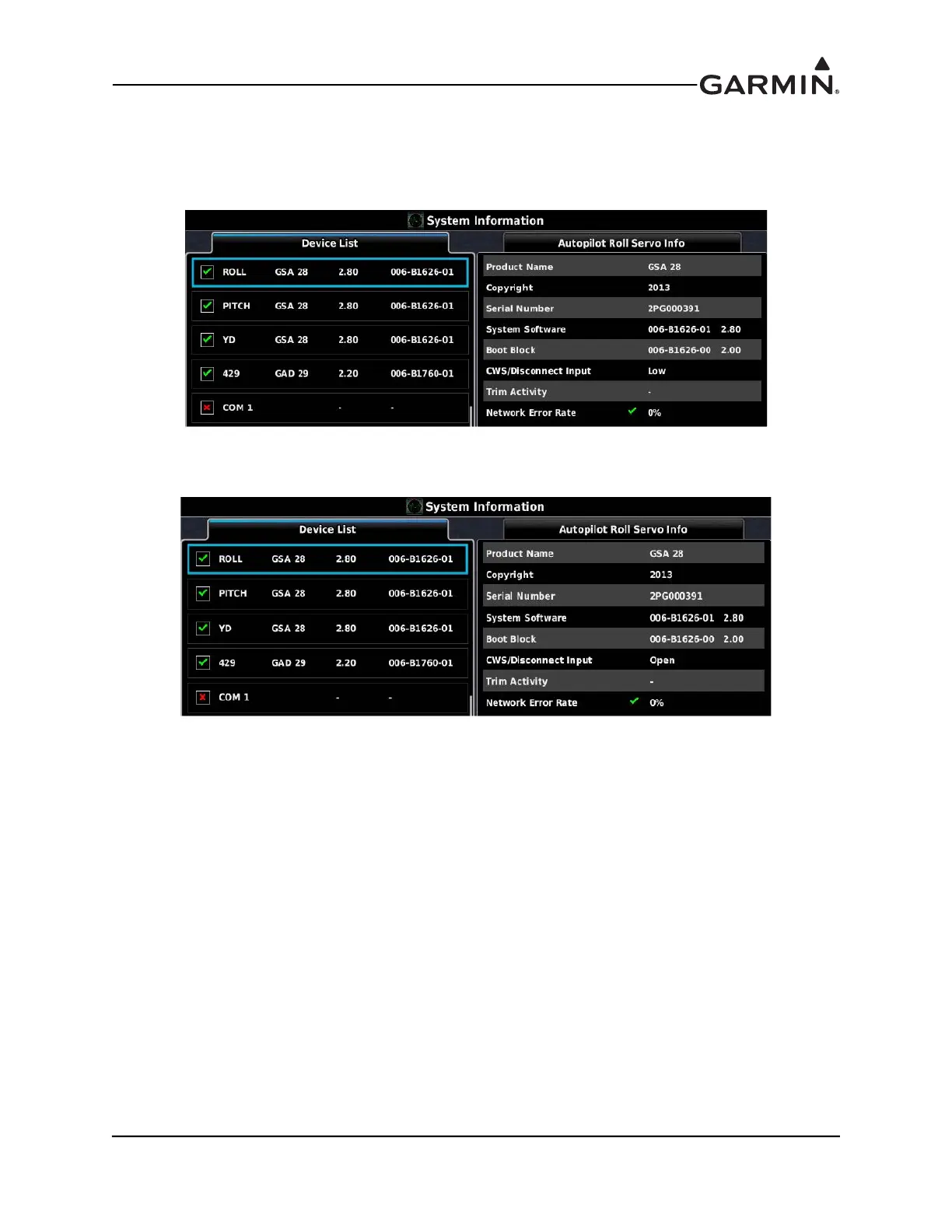

5. Go to the System Information page in configuration mode and verify the CWS/Disconnect Input is
properly wired for each servo.
a) CWS/Disconnect Input should display “Low” when the autopilot disconnect button is
pressed.
b) CWS/Disconnect Input should display “Open” when the autopilot disconnect button is NOT
pressed.
c) The system will compare the CWS/Disconnect input from all servos, press and hold the
autopilot disconnect button for at least 5 seconds to verify there are no SYNC faults.
