190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-70

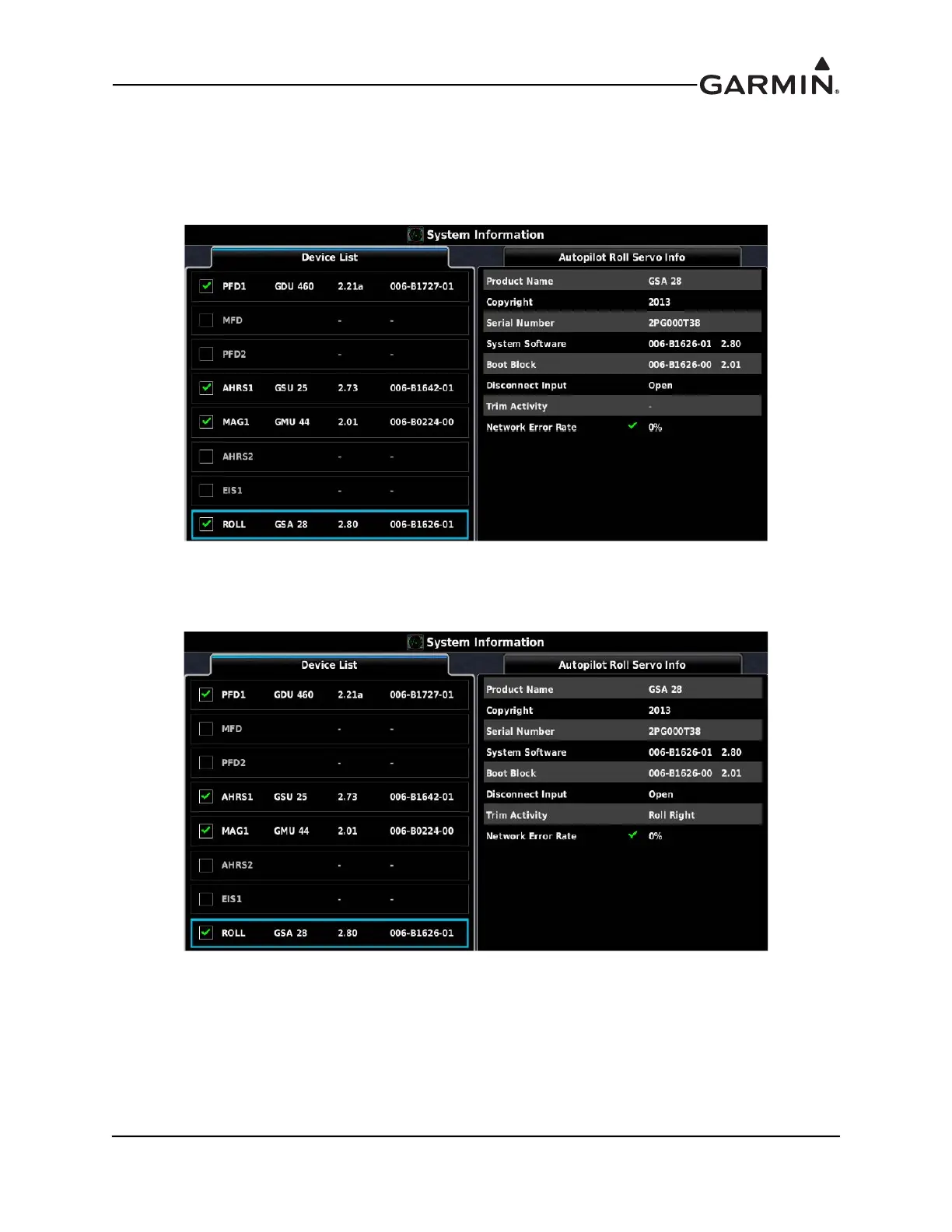

6. Go to the System Information page in configuration mode and verify the proper Trim Activity is
displayed if the Roll servo is connected to an auxiliary trim motor.
a) Center the aileron trim switch to input no TRIM command. Verify the aileron trim switch is
not moving. Verify that Trim Activity for the Roll servo is properly displaying “-” for no
activity.
b) Use the aileron trim switch to input a roll right TRIM command. Verify the aileron trim
switch properly moves for roll right trim. Verify that Trim Activity for the Roll servo is
properly displaying “Roll Right”.
