190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-71

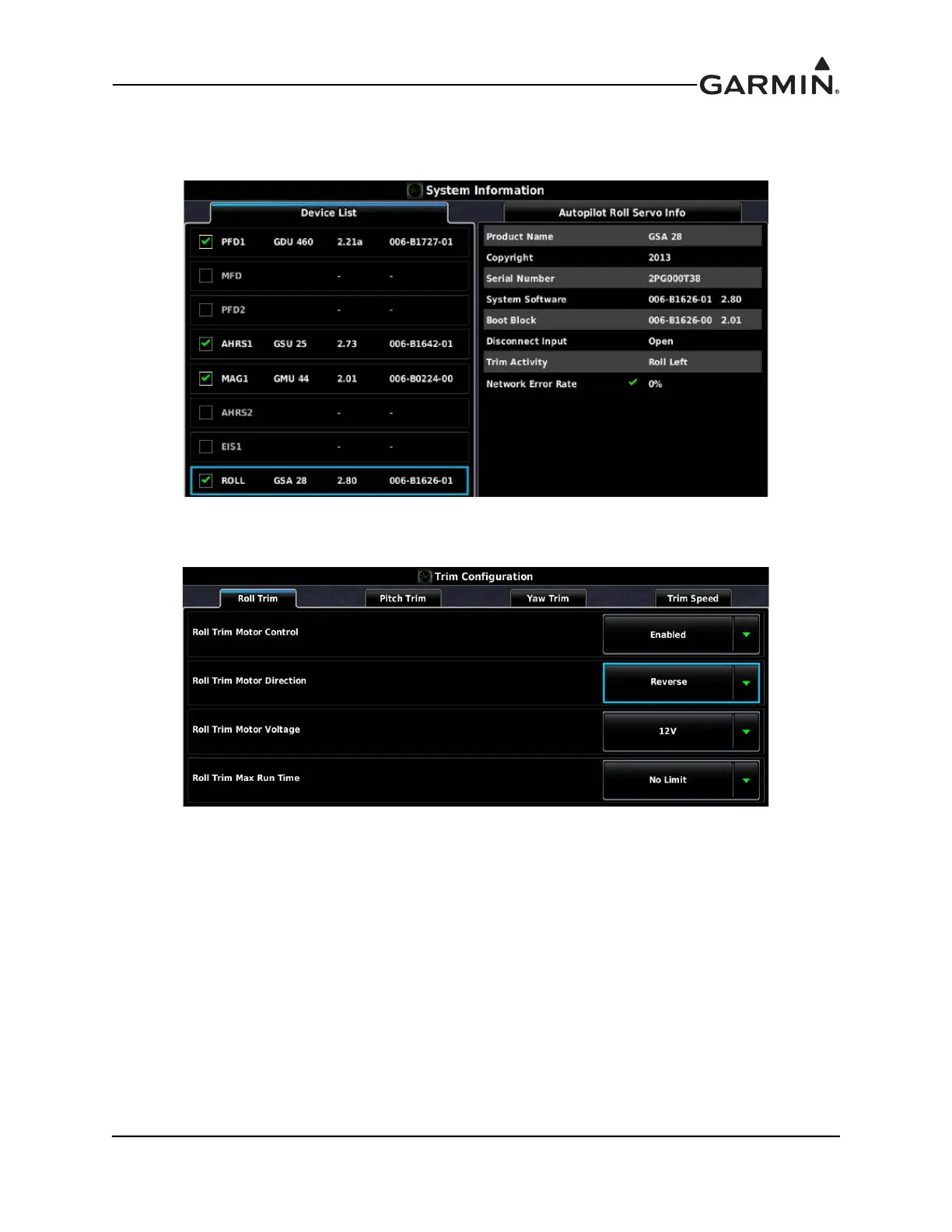

c) Use the aileron trim switch to input a roll left TRIM command. Verify the aileron trim
switch properly moves for roll left trim. Verify that Trim Activity for the Roll servo is
properly displaying “Roll Left”.
d) If the aileron trim response is reversed, go to the Trim Configuration page and change the
Roll Trim Motor Direction to Reverse, then repeat step all of step 6.
