190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-80
10. Go to the Autopilot Configuration page and navigate to the Pitch Tab to configure the servo
direction.
a) The Servo Direction should be set to Normal. The servo arm should move clockwise to
cause a nose down elevator movement and the servo arm should move counterclockwise to
cause a nose up elevator movement.

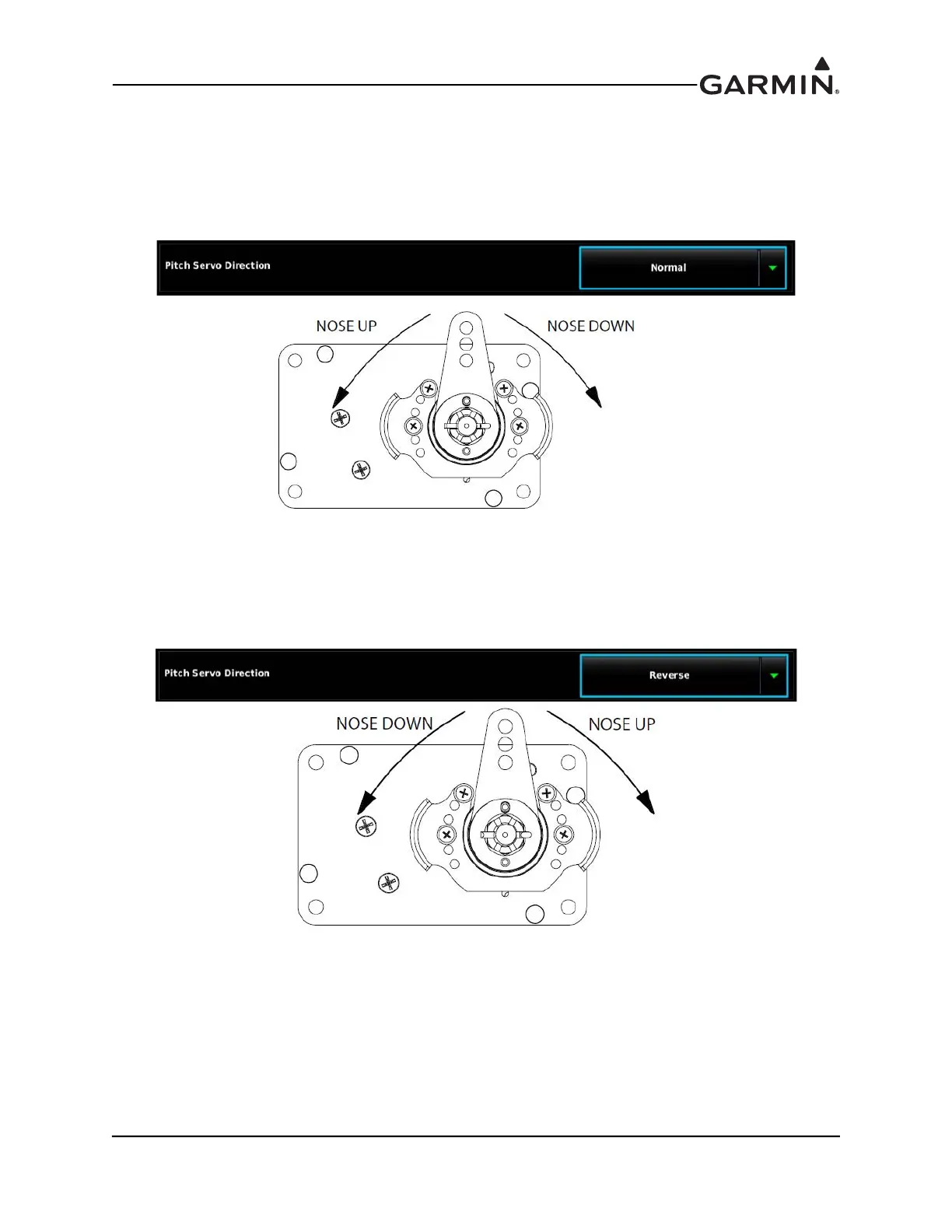

Figure 30-25 Normal Pitch Servo Direction
b) The Servo Direction should be set to Reverse and the servo arm should move clockwise to
cause a nose up elevator movement and the servo arm should move counterclockwise to
cause a nose down elevator movement.
Figure 30-26 Reversed Pitch Servo Direction
