Maximum Bank Angle–Used to limit the maximum roll attitude commanded by the flight director for
aircraft that have unusual attitude limitations. This setting should not be adjusted from the default of 30°
except for very high performance aircraft that have bank angle limitations at high speeds.
Altitude Controls–Select Normal (default) or Simplified. Selecting Simplified results in a simpler set of
behaviors for altitude hold mode. See the G3X Touch Pilot's Guide for additional details.

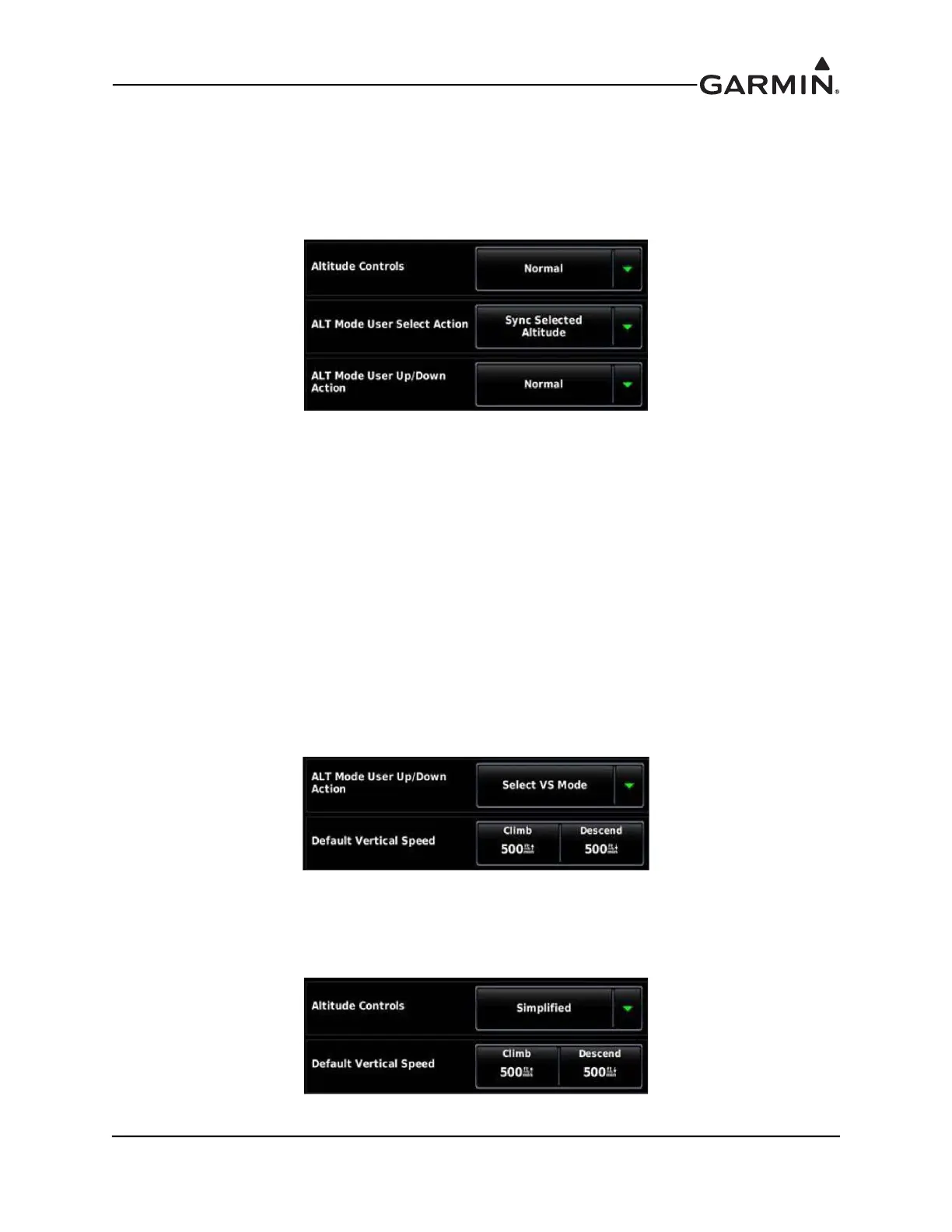

Figure 30-42 Altitude Controls, Normal
When Altitude Controls is set to Normal, the following two selections (ALT Mode User Select Action and
ALT Mode User Up/Down Action) appear, see Figure 30-42:
ALT Mode User Select Action–Select Normal or Sync Selected Altitude. This setting controls the
actions that occur when the user selects altitude hold mode by pressing the ALT key on the GMC Mode
Controller, or the ALT button on the display. When set to Sync Selected Altitude, the selected altitude
(altitude bug) will be automatically set to the current aircraft altitude when the user selects altitude hold
mode manually by pressing the ALT key on the GMC Mode Controller or the ALT button/softkey on
the display. See the G3X Touch Pilot's Guide for additional details.
ALT Mode User Up/Down Action–Select Normal or Select VS (vertical speed) Mode. This setting
controls the actions that occur when the flight director is in altitude hold (ALT) mode and the user
moves the pitch wheel on the GMC Mode Controller, or the up/down buttons on the display. When set
to Select VS Mode, moving the pitch wheel on the GMC Mode Controller, or the on-screen buttons
results in a change to VS mode for a climb or descent to a new altitude. See the G3X Touch Pilot's
Guide for further details.
Figure 30-43 Default Vertical Speed
When Altitude Controls is set to Simplified, the ALT Mode User Select Action and ALT Mode User Up/
Down Action fields do not appear, but the Default Vertical Speed fields do appear as shown in
Figure 30-44.
Figure 30-44 Altitude Controls, Simplified
