190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 30-154

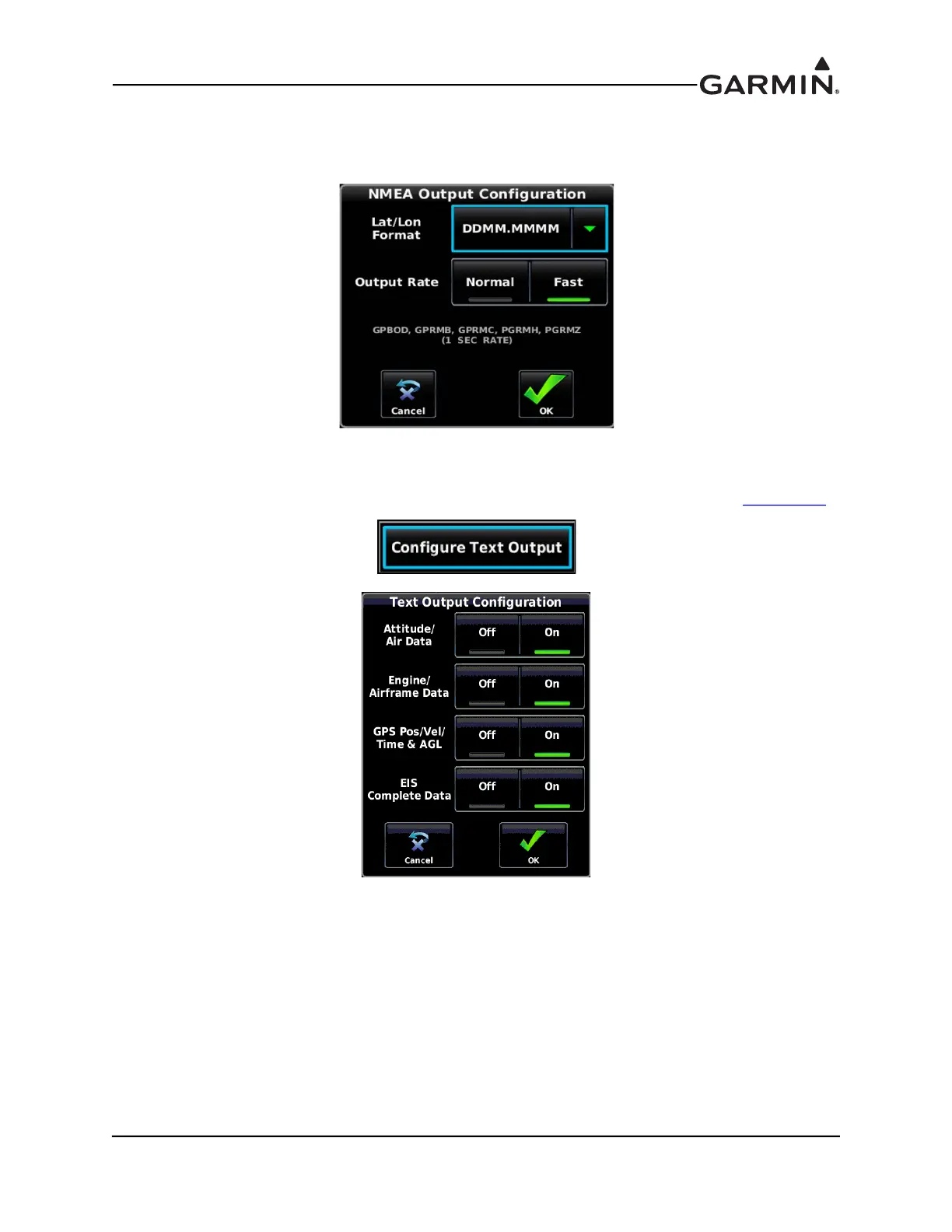

Fast (every second): GPBOD, GPRMB, GPRMC, PGRMH, PGRMZ
Normal (every two seconds): GPAPB, GPBOD, BPBWC, GPGGA, GPGLL, GPGSA, GPGSV,GPRMB,
GPRMC, GPRTE, GPVTG, GPWPL, GPXTE, PGRME, PGRMH, PGRMM, PGRMZ
Text Out – Selecting Text Out enables a Configure Text Output button to appear when the Menu key is
pressed (while on the COM Configuration Page). Pressing this button displays a pop-up menu that allows
setting four selections (Attitude/Air Data, Engine/Airframe Data, GPS Position/Velocity, and EIS
Complete Data) to On or Off. The On setting allows the output of Text Data as described in Appendix C
.
Aviation In - The proprietary format used for input to the G3X (baud rate of 9600) from an FAA certified
Garmin panel mount unit. Allows the G3X to display a Go To or route selected on the panel mount unit,
which eliminates the need to enter the destination on both units. If the external GPS navigator supports
both the Aviation In and MapMX formats, Garmin recommends using the preferred MapMX format.
Aviation In/NMEA & VHF Out - Receives aviation data and transmits out both NMEA data, at 9600
baud, and VHF frequency tuning information to a Garmin Nav/Comm radio.
