190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page 30-220

When editing the gauge configuration for an EIS input, an asterisk displayed alongside a range marking

indicates that it uses logic signals (see Figure 30-68).

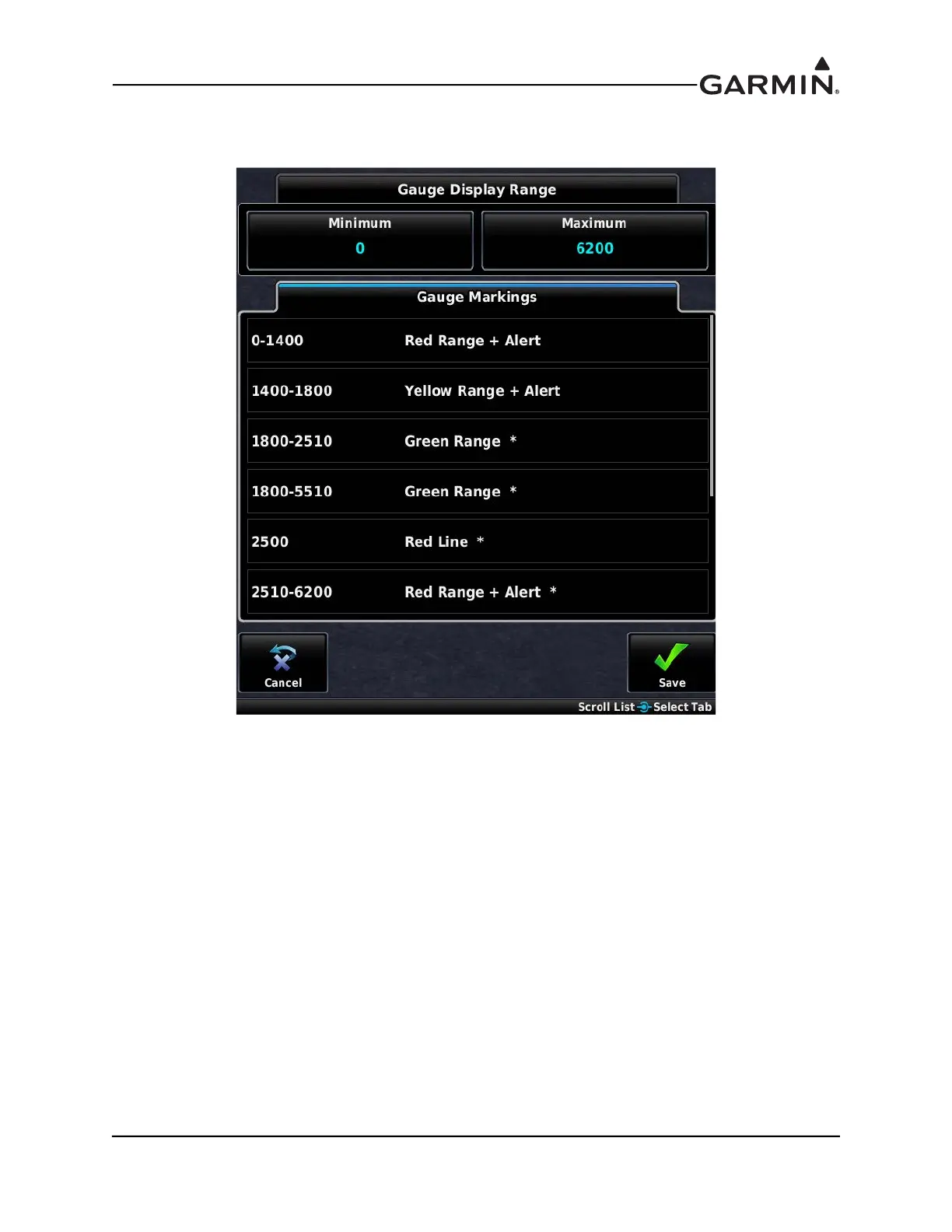

Figure 30-68 Gauge Markings List Showing Use Of Logic Signals
