190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page 5-7
CAUTION
Do not use the heated/regulated version of the GAP 26 (010-01074-20) in 28V
installations. The heated/non-regulated version of the GAP 26 (010-01074-10) may be
used in either 14V or 28V installations when connected as per Figure 5-6 or Figure 5-7.
CAUTION
Do not connect the heaters in parallel to 28V. See Figure 5-7 for use on 28V aircraft. The
heaters will be damaged if connected incorrectly to 28V.

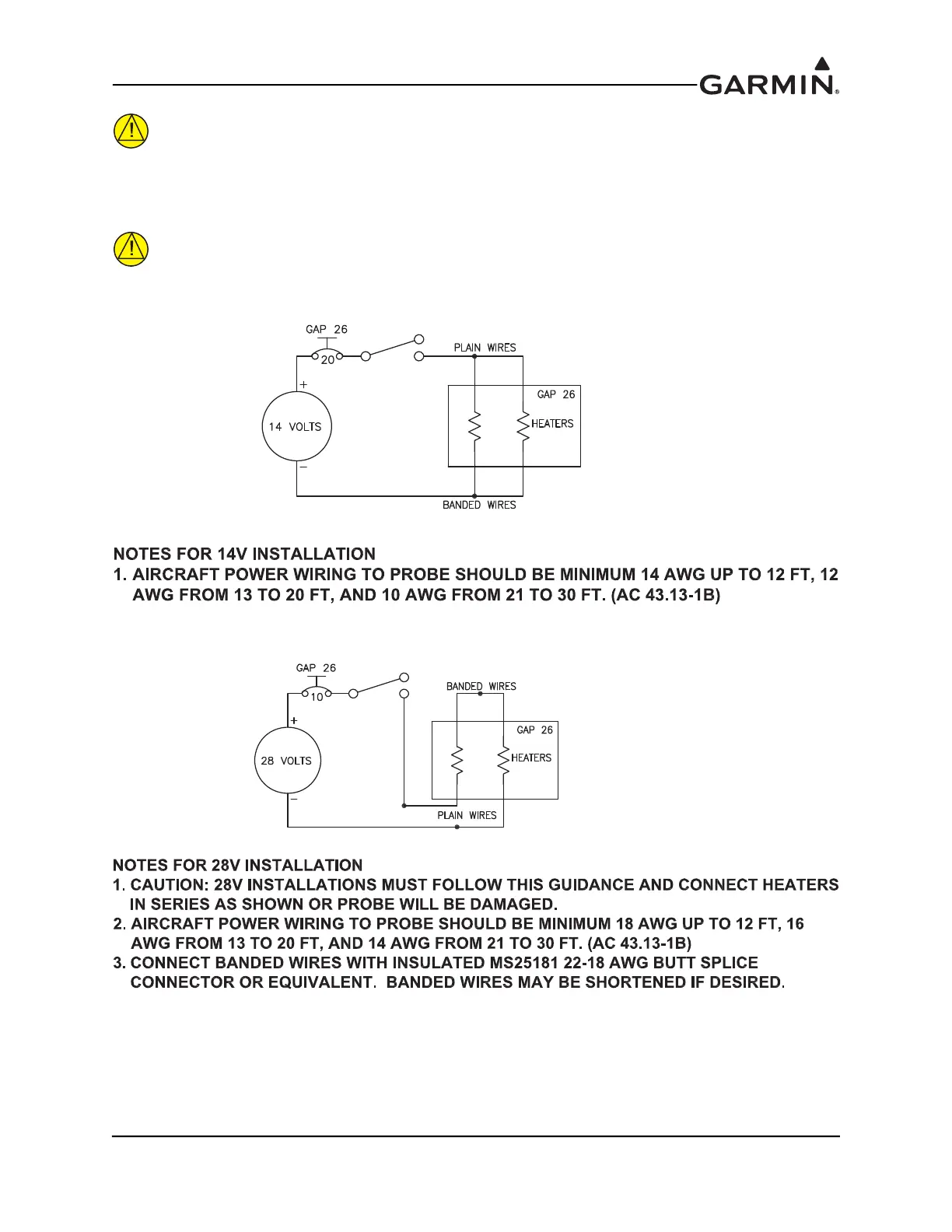

Figure 5-6 GAP 26, 14V Installation Configuration (010-01074-10 only)
Figure 5-7 GAP 26, 28V Installation Configuration (010-01074-10 only)
