190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page B-6
1. Rivet the GMU 22 Installation Rack (115-00481-X0) to the Top Bracket Assembly
(115-01052-00) as shown in Figure B-4.

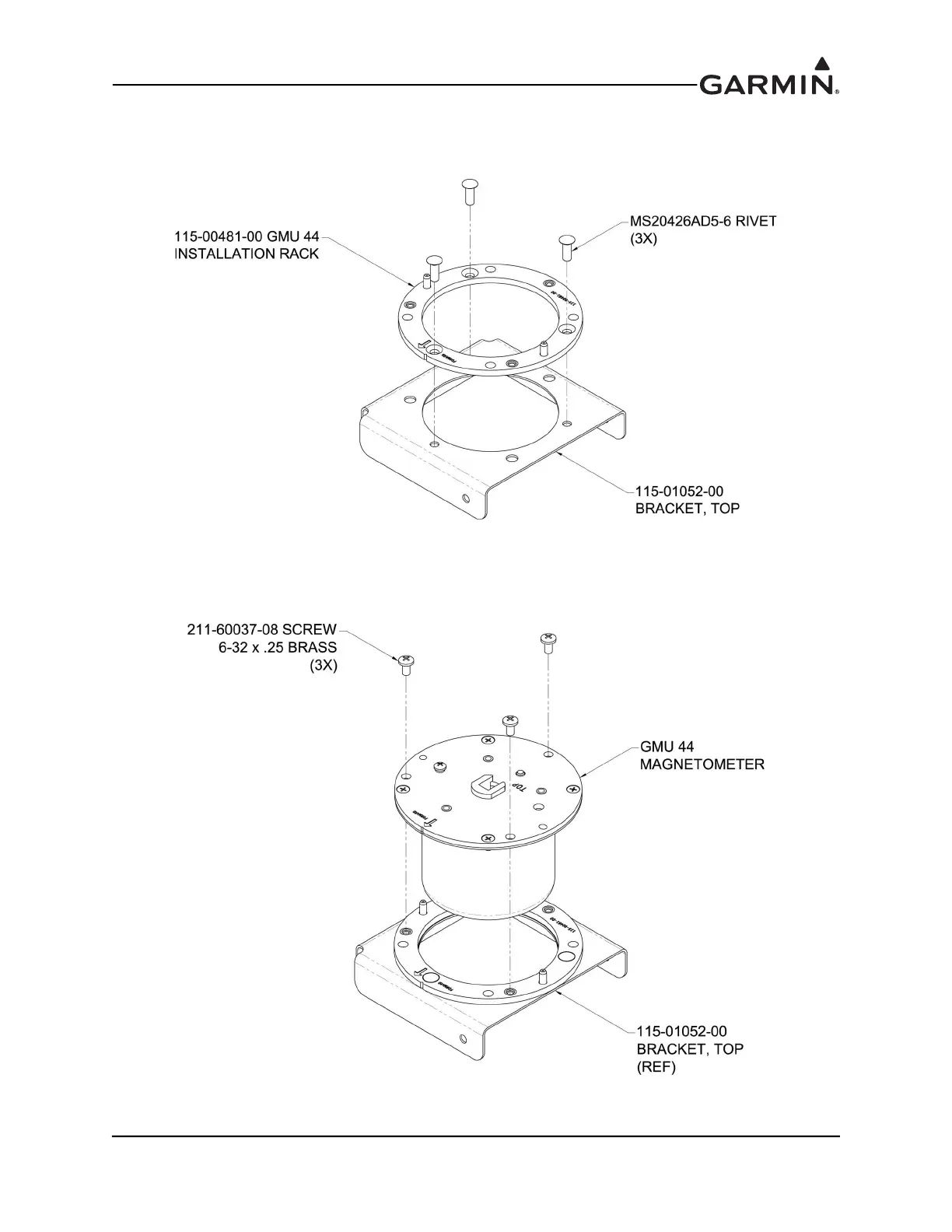

Figure B-4 Lancair IV/IV-P GMU 22 Mounting Bracket
2. Attach the GMU 22 to the Top Bracket Assembly (115-01052-00) using screws (211-60037-08) as
shown in Figure B-5.
Figure B-5 Lancair IV/IV-P GMU 22 Mounting Bracket
