190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page H-27

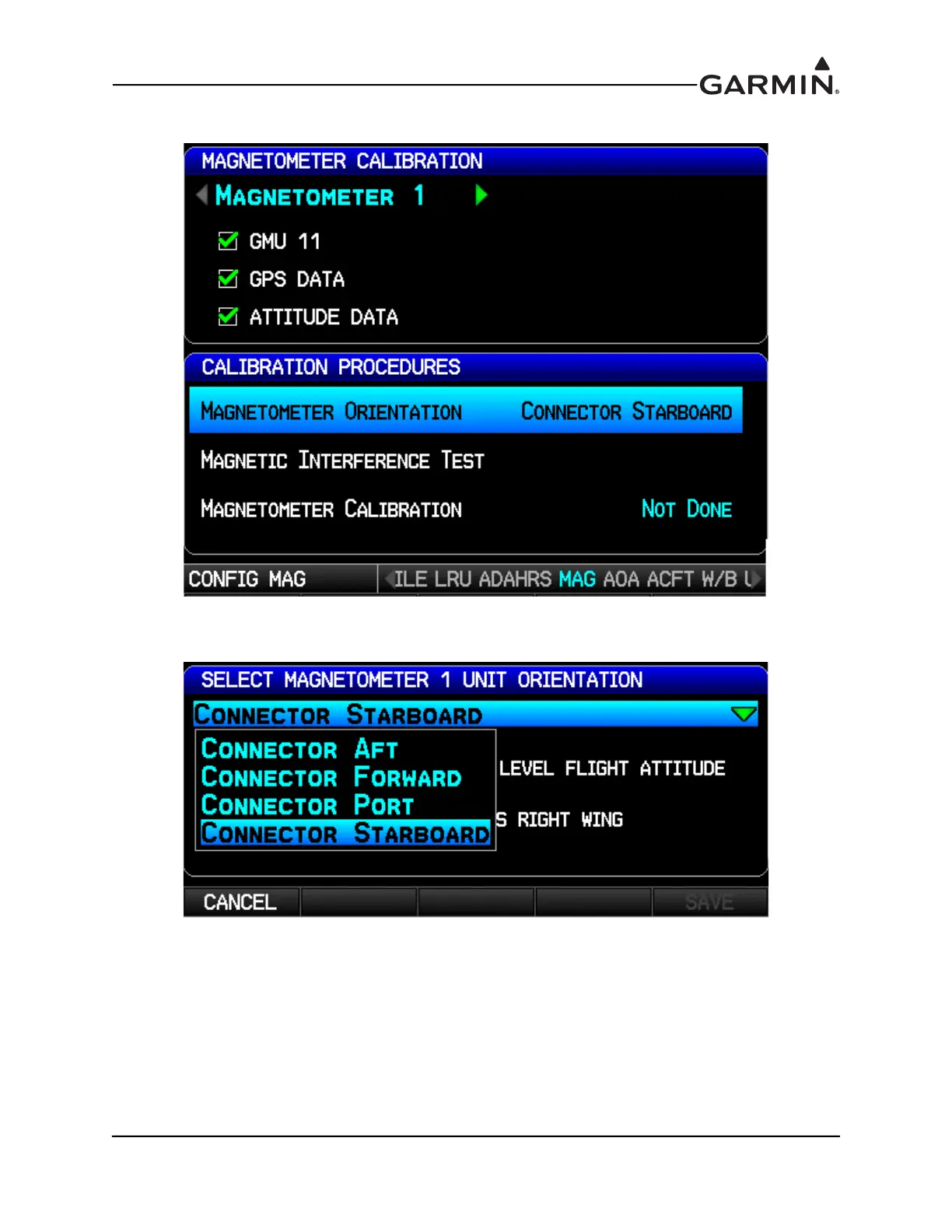

4. Use the FMS Joystick to select Magnetometer Orientation and press the ENT key.

5. Use the FMS Joystick to select the correct orientation of the mounted GMU 11 and press the ENT

key.
