190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page H-28

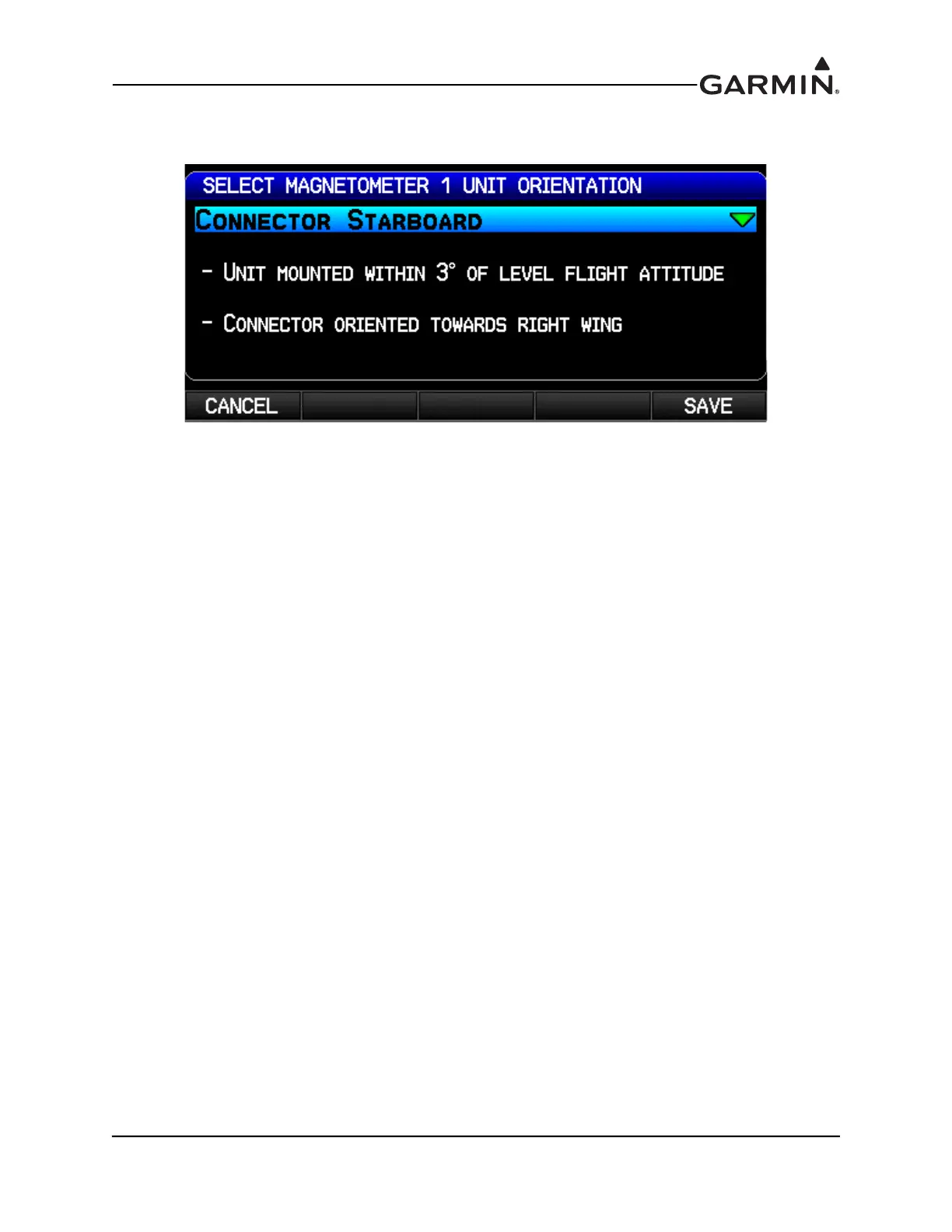

6. Make sure the orientation of the GMU 11 complies with the displayed conditions, then press

SAVE to store and complete the Magnetometer Orientation procedure.
