190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page H-36

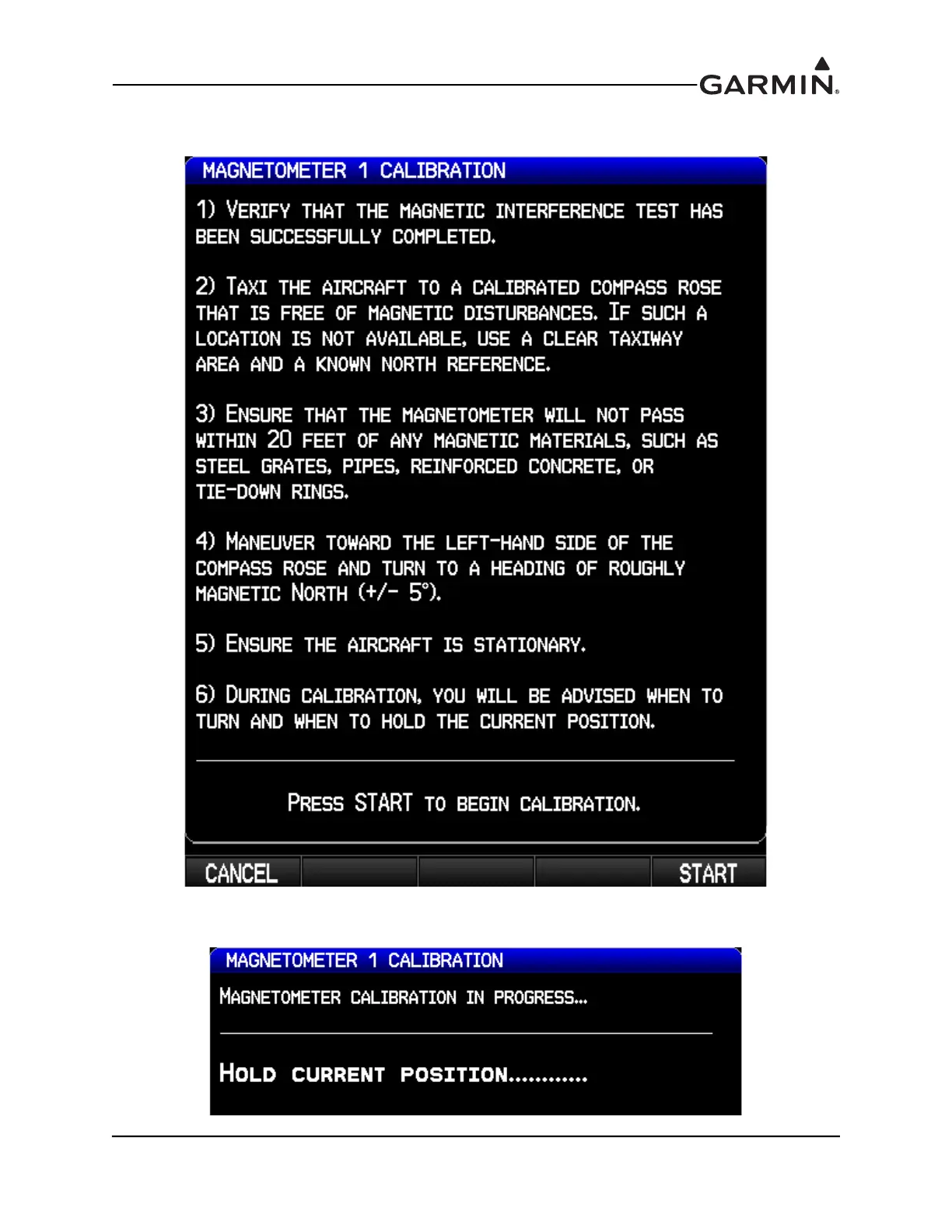

5. Make sure that all on-screen instructions have been complied with, then press the Start softkey to

begin the calibration.

6. Follow the on-screen instructions, the dots at the end of the text will be removed as the test

progresses.
