11. Go to the AP page in configuration mode and navigate to the Yaw Servo sub-section to configure
the servo direction.
a) The Servo Direction should be set to Normal. The servo arm should move clockwise to
cause a nose left rudder movement and servo arm should move counterclockwise to cause a
nose right rudder movement.

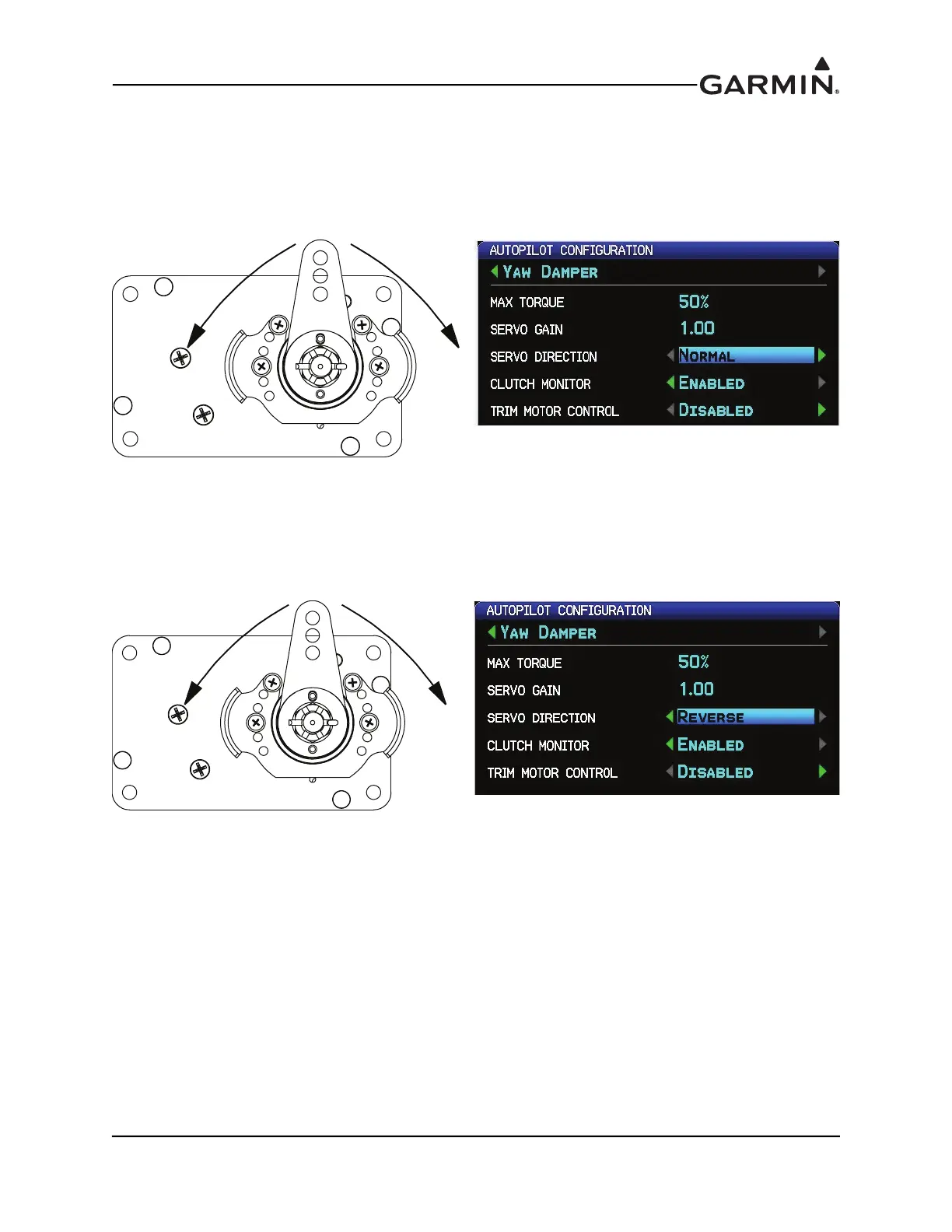

Figure H-9 Normal Yaw Damper Direction
b) The Servo Direction should be set to Reverse. The servo arm should move clockwise to
cause a nose right rudder movement and the servo arm should move counterclockwise to
cause a nose left rudder movement.
Figure H-10 Reversed Yaw Damper Direction
