190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page H-58
Pitch Servo

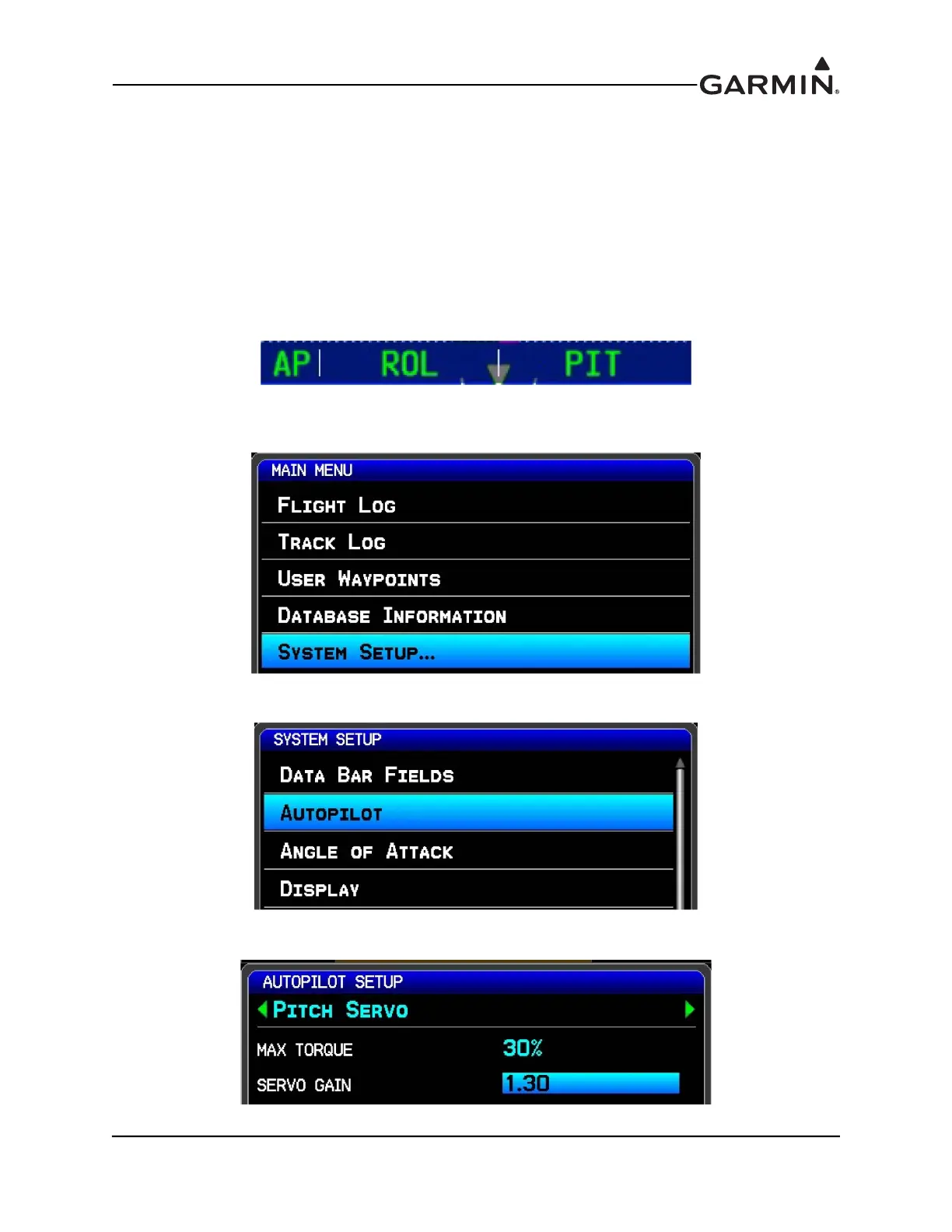

1. Use the AUTOPILOT SETUP page to adjust the PITCH SERVO gain setting
a) Engage the autopilot in ROL/PIT mode with the aircraft approximately level
i. With no GMC Mode Controller:
1.Press, hold, and release the CWS/DISCONNECT button to engage the AP
ii. With a GMC Mode Controller:
1.Press the AP button on the GMC Mode Controller to engage the AP
2.Press the YD button on the GMC Mode Controller to DISENGAGE the YD
b) Press MENU two times on the GDU to enter the MAIN MENU page.
c) Select the SYSTEM SETUP page.
d) Select the AUTOPILOT page.
e) Select PITCH SERVO page and highlight the SERVO GAIN entry.
