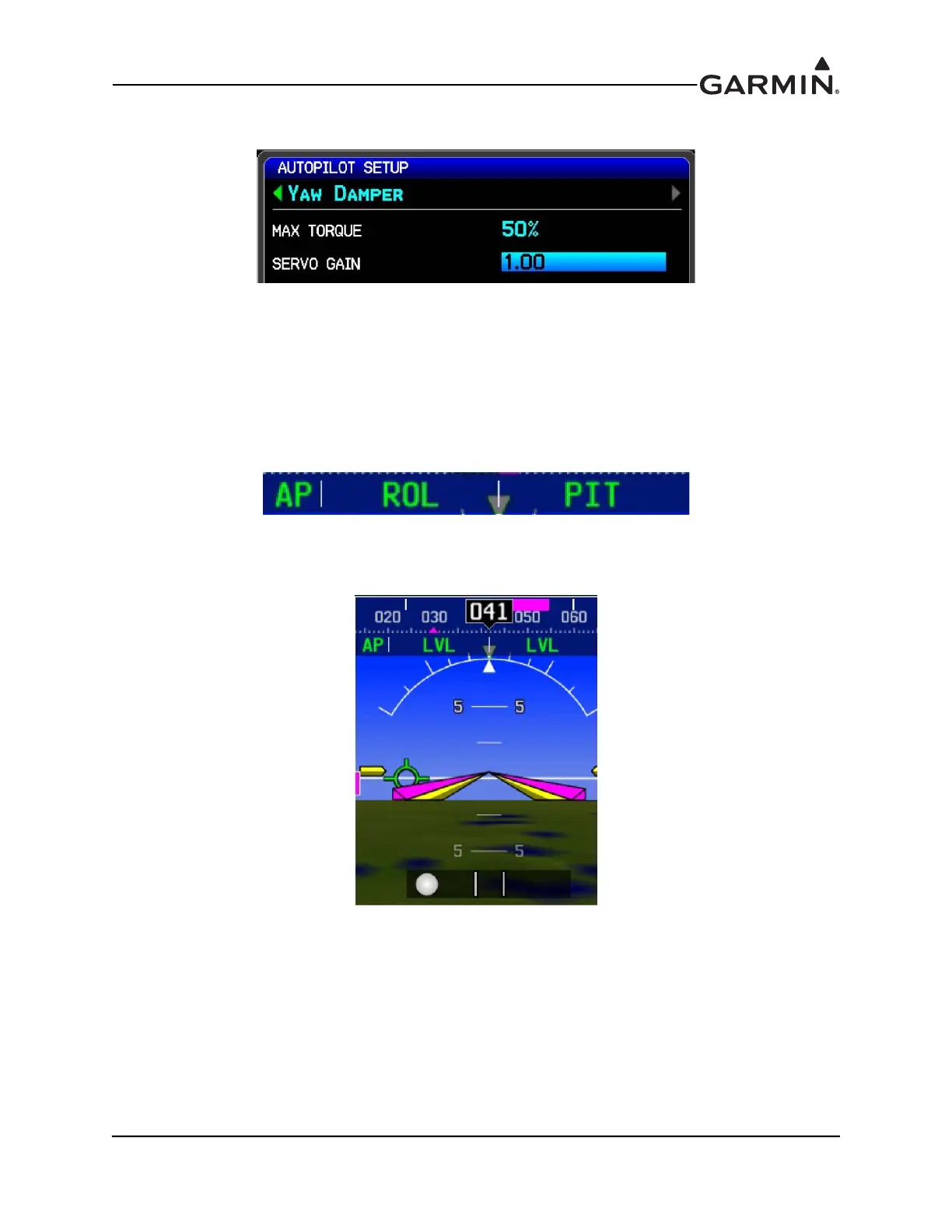

d) Select YAW DAMPER page and highlight the SERVO GAIN entry.
e) Adjust the servo gain so the aircraft properly responds to the yaw body rates (tail wagging)
i. Engage the autopilot in LVL mode with the aircraft approximately level
ii. With a GMC Mode Controller
1.Press the LVL button on the GMC Mode Controller to engage the AP in LVL
mode
2.Press the YD button on the GMC Mode Controller to disengage the YD
iii. Fly a yaw doublet and engage the YD as the ball swings through the center
1.Right foot rudder to swing ball left
