190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page H-84
Minimum Visible AOA Calibration
This procedure sets the AOA value for the bottom of the AOA gauge green arc (Figure H-26), which is
also the AOA value at which the gauge will first appear on the PFD. Perform this calibration while flying
the aircraft at an AOA somewhat higher than a normal cruise flight (1.5 x stall speed is suggested) to avoid
nuisance frequent appearances of the AOA gauge.

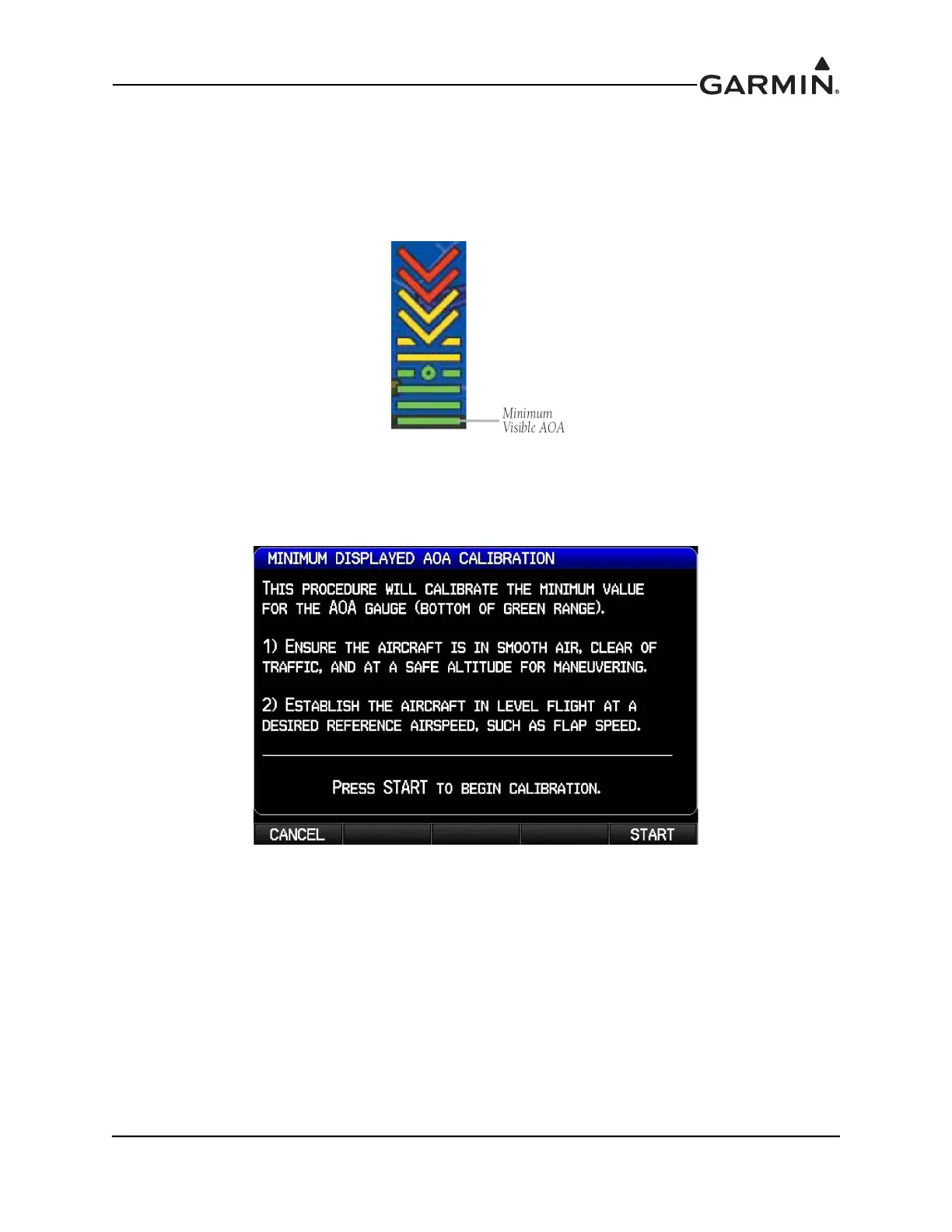

Figure H-26 Minimum Visible AOA
1. Use the FMS Joystick to select the Calibrated Minimum Visible AOA calibration field, then press
the Calibrate softkey
.
2. Follow the onscreen instructions, then press the Start softkey to begin the calibration.
