190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page H-91

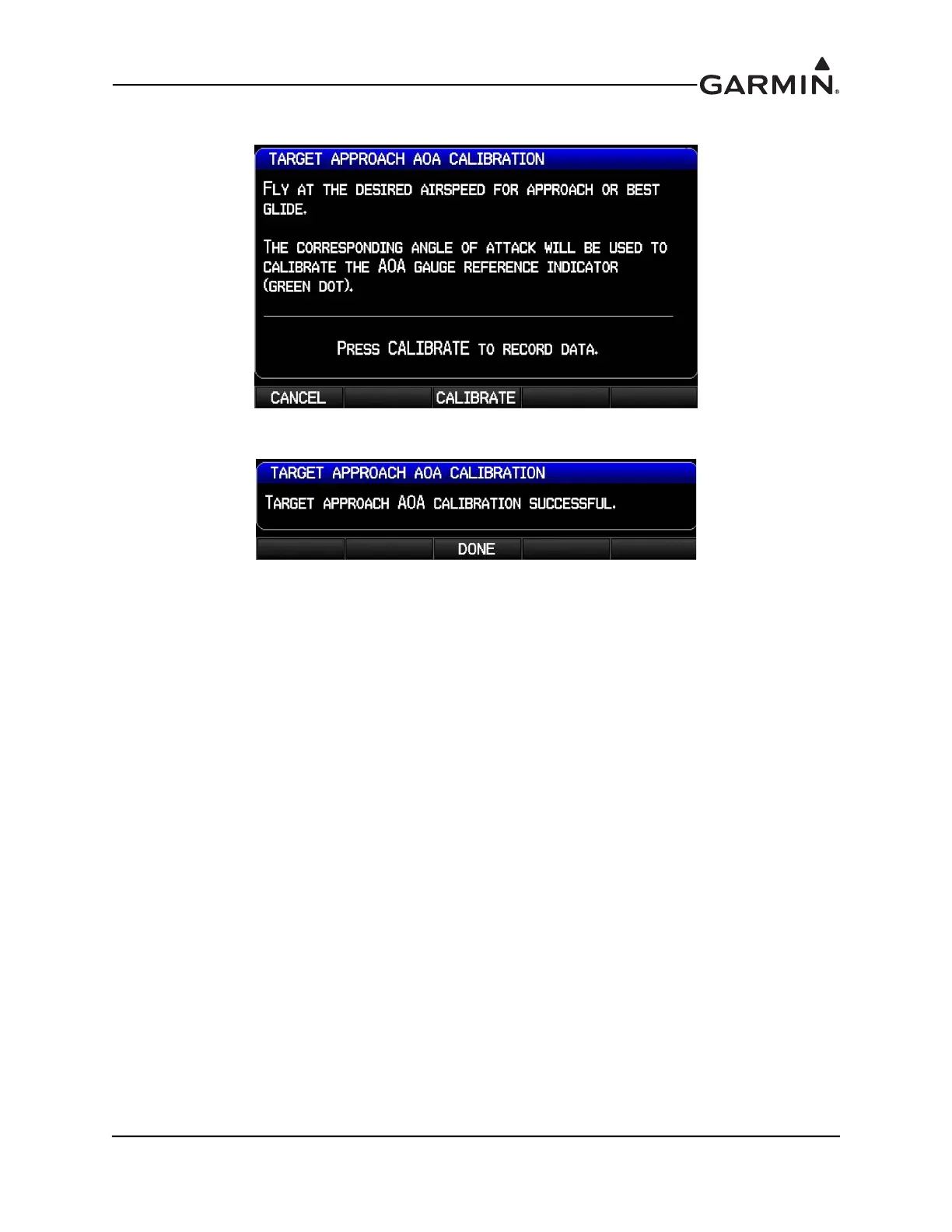

3. Press the Calibrate softkey when in compliance with the onscreen instructions.

4. Verify the calibration is successful, then press the Done softkey when finished.

5. This completes the AOA calibration procedure.
