190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual
Rev. AV Page H-93
change to VS mode for a climb or descent to a new altitude. See the G3X Pilot's Guide for further
details.

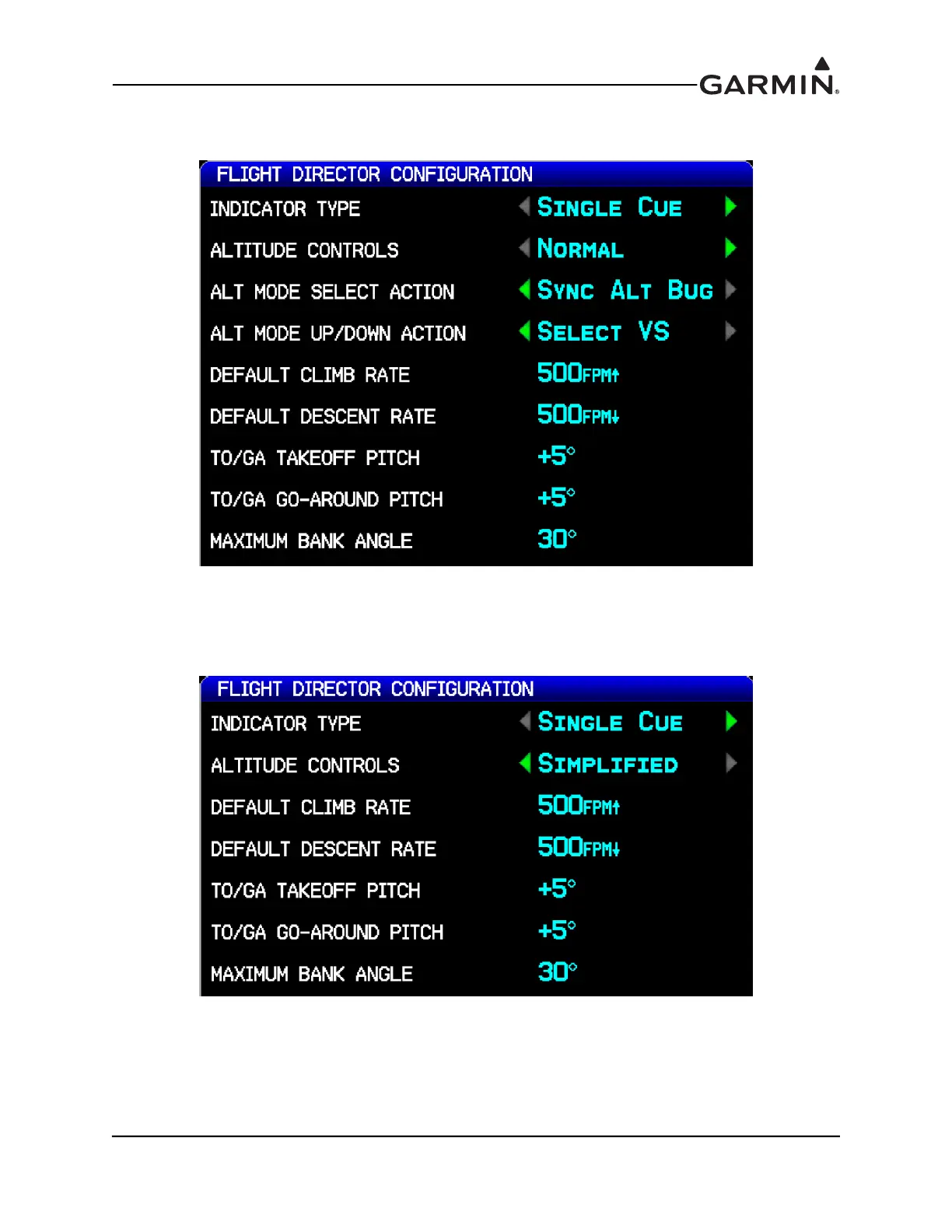

Figure H-31 Default Vertical Speed
When Altitude Controls is set to Simplified , the ALT Mode User Select Action and ALT Mode User Up/
Down Action fields do not appear, but the Default Climb Rate/Descent Rate fields do appear as shown in
Figure H-32.
Figure H-32 Altitude Controls, Simplified
