190-01115-01 G3X™/G3X Touch™ Avionics Installation Manual

Rev. AV Page H-99

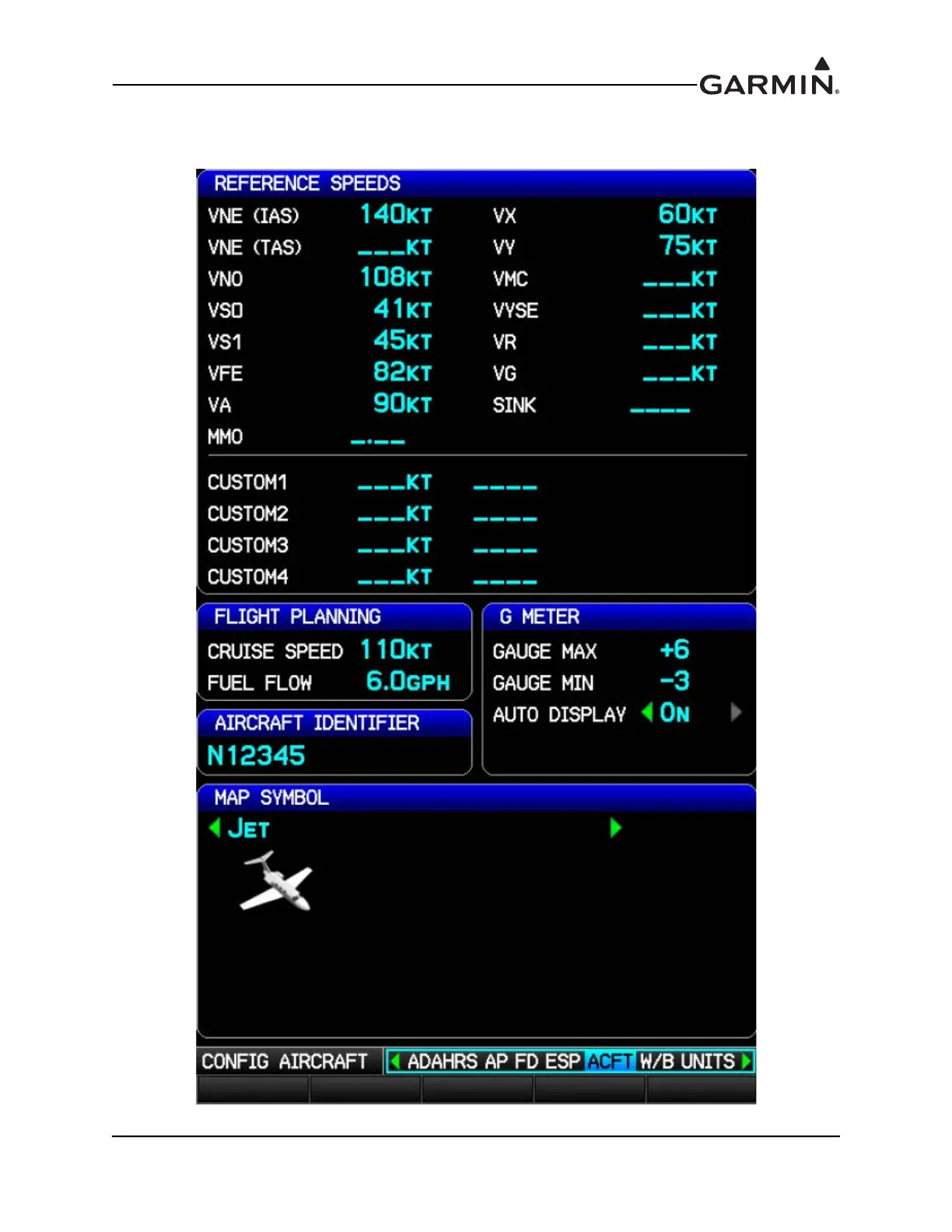

2. Use the FMS Joystick to select the desired configurable item and make the desired change. Then

press the ENT Key or use the FMS Joystick to select the next item. Press the FMS Joystick to

move the cursor to the page selection menu when finished.
