Setup Procedures: US/US2 Setup Screen
US/US2 Setup Screen
Select the US or US2 softkey to access the US/US2 Setup screen (Figure 5-2). The
title of the screen (US vs. US2) is dependent on the mode selected when the screen is
activated. For information on settings, refer to Appendix A, “Factory Defaults” .

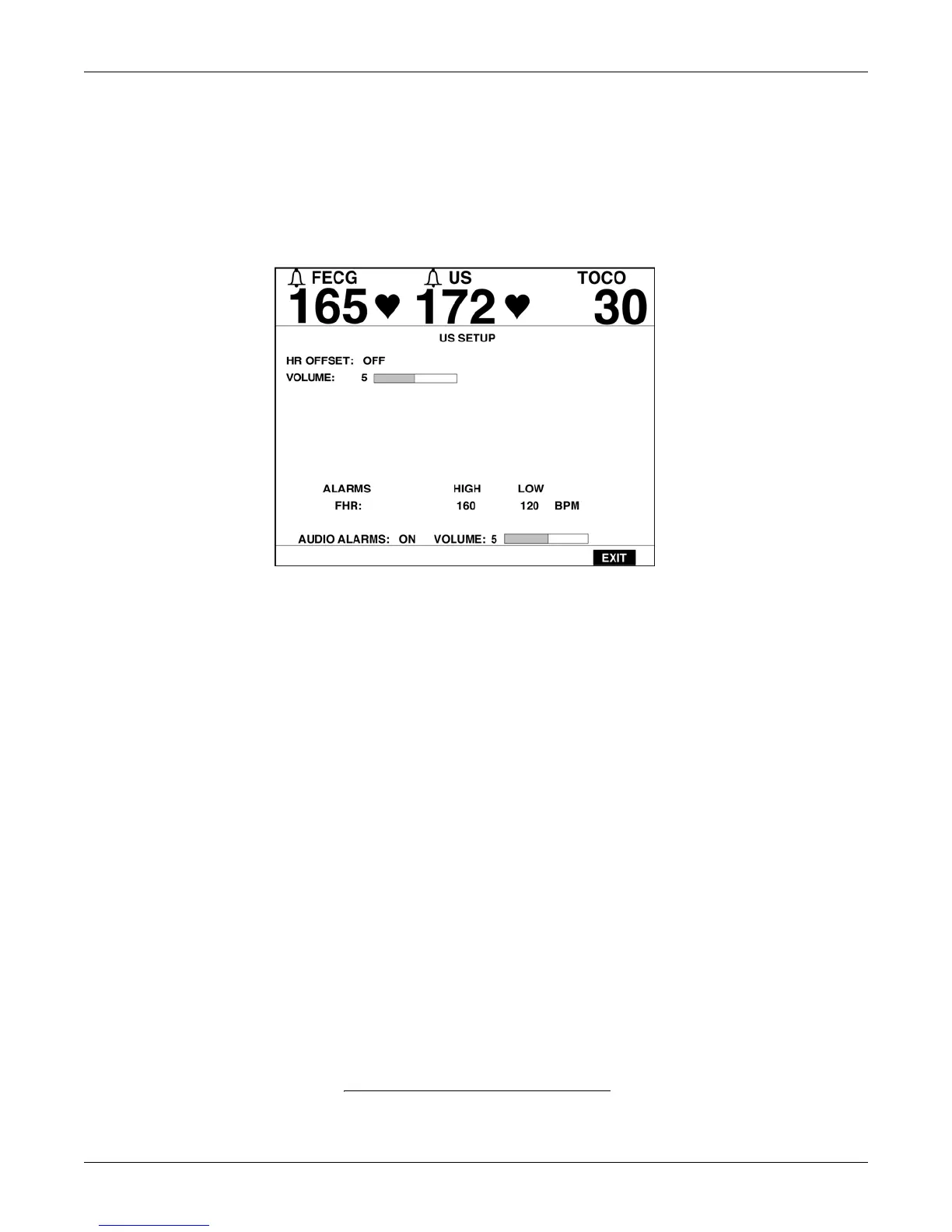

Figure 5-2. US/US2 Setup Screen
Fetal Movement Detection
This field is only displayed: for the US connector; and if the option is installed in
your monitor; and if a transducer is plugged into the
US connector.
Fetal Heart Rate Offset
This field is used to shift the secondary FHR trend +20 BPM to facilitate viewing
overlapping trends. This field provides an alternative to using the front panel Mark
(Offset) button.
On
*
: Shifts the secondary FHR trend +20 BPM.
10 Min: Shifts the secondary FHR trend +20 BPM. After 10 minutes, the
trend automatically returns to the unshifted position.
Off: Returns the secondary FHR trend to the unshifted position.
The FHR Offset field is only present on the setup screen when:
the heart rate offset option is enabled via the Install Options service screen;
and
the screen is activated by selecting the mode listed in the FHR2 area of the
display.
*
This field selects between either on/off or 10 Min/Off, depending on how this feature is enabled on the
Install Options service screen.
