3-12 120 Series Maternal/Fetal Monitor Revision B
2015590-001
Controls, Indicators, and Connectors: Front Panel Displays
FSpO2 Area
The FSpO2 area is summarized by Figure 3-8 and Table 3-8.
IMPORTANT
If FSpO
2 is monitored while MSpO2 is inactive, FSpO2 displays in
the Additional Parameters Area. When dual SpO
2 monitoring
occurs, FSpO
2 information is displayed in the Waveform Area
beneath the MSpO2 area.

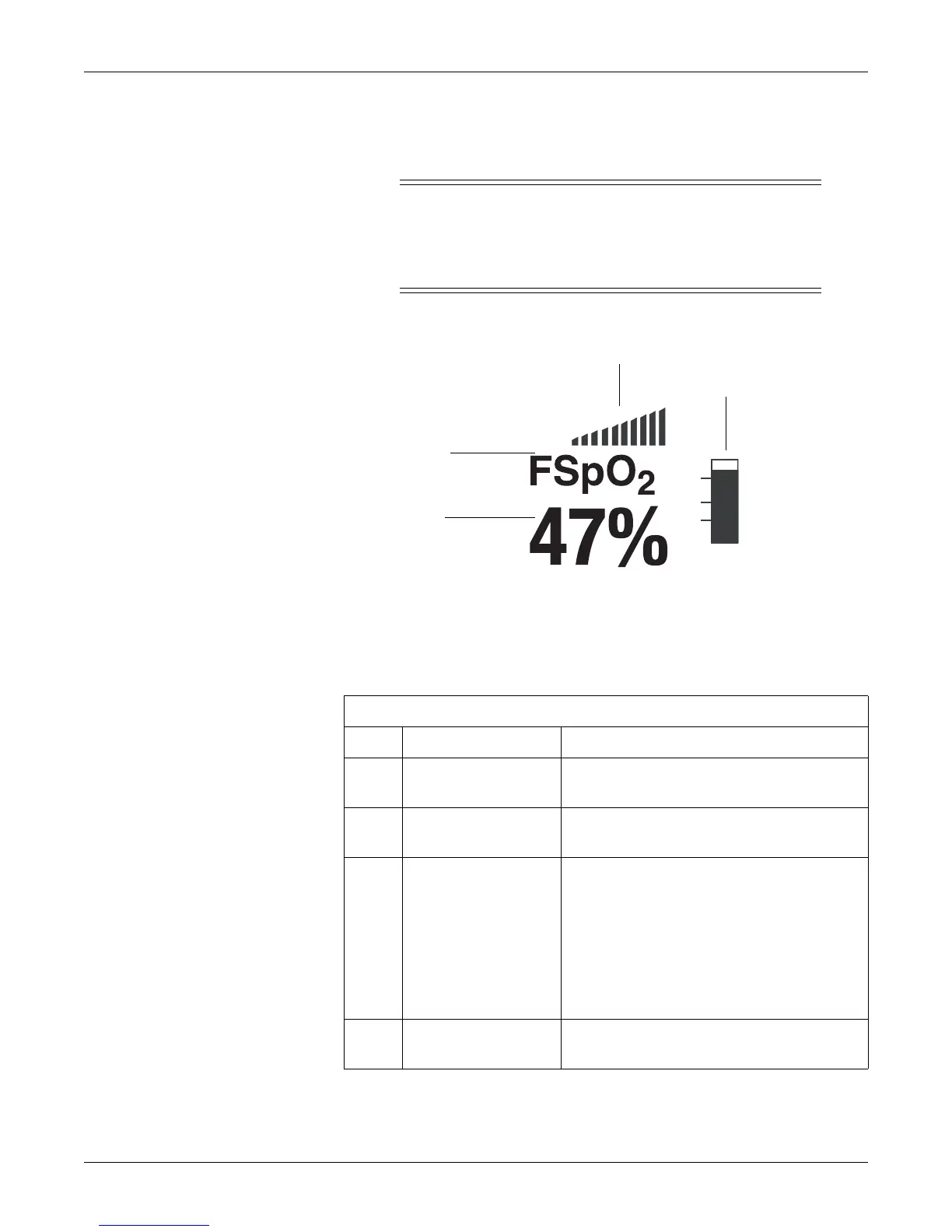

Figure 3-8. FSpO
2 Display
Table 3-8. FSpO
2 Display
Name Description
A FSpO
2 Value
This three-digit display indicates the FSpO
2 level
calculated form qualified optical pulses.
B FSpO
2 Mode Title
The
FSpO2 title indicates that fetal oxygen
saturation monitoring is in progress.
C Signal Quality Indicator
This indicator shows the average signal quality of
pulses being detected at the sensor site according
to a software algorithm in the 120 F-Series Monitor.
The presence of all ten bars represents fetal pulses
with consistently high signal quality for FSpO
2
measurement. Fewer bars represents diminished
signal quality. The absence of bars represents a
lack of fetal pulses with acceptable signal quality.
D
Pulse Amplitude
Indicator
This vertical bar qualitatively indicates pulse
amplitude at the sensor site.
C
D
B
A
