Revision B 120 Series Maternal/Fetal Monitor 3-17
2015590-001
Controls, Indicators, and Connectors: Rear Panel Description
Rear Panel Description

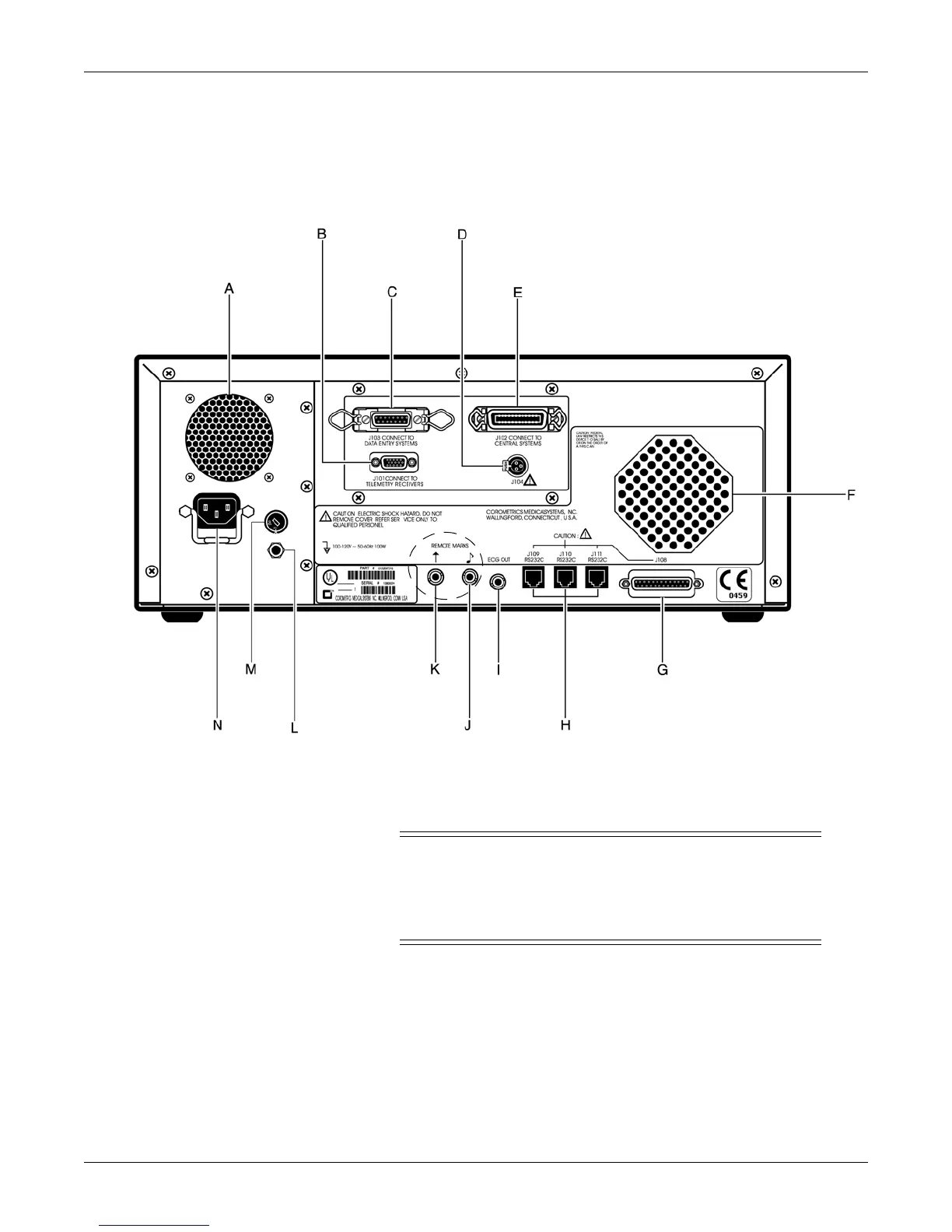

Figure 3-13. 120 Series Rear Panel Connectors (Standard and Optional)
IMPORTANT––The fetal acoustic stimulator connector (J) and
the remote event marker (K) connector are identical in size. To
ensure data accuracy, be sure to plug sensors into the correct
connectors.
F
