Revision B 120 Series Maternal/Fetal Monitor 3-13
2015590-001
Controls, Indicators, and Connectors: Front Panel Displays
MSpO2 Area

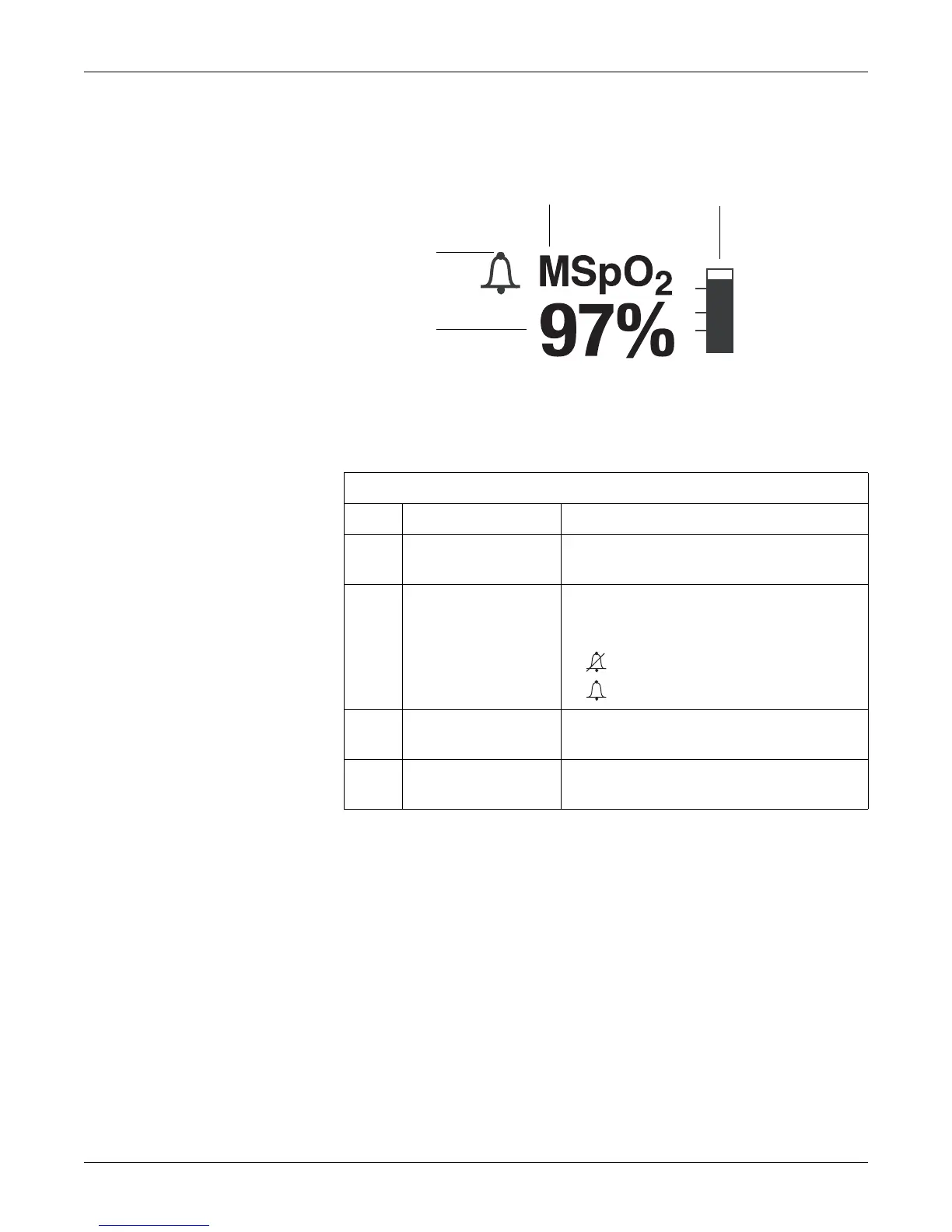

The MSpO2 area is summarized by Figure 3-9 and Table 3-9.
Figure 3-9. MSpO
2 Display
Waveform Area
The waveform area displays approximately four seconds of waveform data for:
FECG, MECG, FSpO
2 or MSpO2.
Time and Waveform Message Area
The current time (in 24-hour format) always displays on the far right. When a
waveform is frozen, the message [
LABEL] FROZEN displays on the far left, along with
the time of activation.
Table 3-9. MSpO
2 Display
Name Description
A MSpO
2 Value
Up to three digits indicate the percentage of
oxygen in the mother’s blood.
B
MSpO
2 Alarm Setting
Indicator
This symbol provides information about the MSpO
2
audio alarm and the MSpO
2 high/low alarm limit
settings.
îš„ : An alarm setting is turned off.
îš„ : All alarm settings are enabled.
C MSpO
2 Mode Title
Select the mode title to access the MSpO
2 Setup
screen.
D
MSpO
2 Pulse Amplitude
Indicator
This vertical bar qualitatively indicates pulse
amplitude.
C
D
B
A
