Revision B 120 Series Maternal/Fetal Monitor 9-29
2015590-001
General Maintenance: Maternal Blood Pressure Tests
F pass F fail
 US: Connect an US test body to the monitor’s front panel US input. The US
test body should be an ultrasound transducer wrapped in aluminum foil.
Measure the voltage breakdown.
F pass F fail
 US2: Connect an US test body to the monitor’s front panel US2 input. The US
test body should be an ultrasound transducer wrapped in aluminum foil.
Measure the voltage breakdown.
F pass F fail
Mains–to–Chassis Using DC Voltage for One Minute
Connect the monitor to the hi-pot tester as shown in Figure 9-7.
NOTE: The hi-pot tester voltage is 2.121 kVdc.
F pass F fail

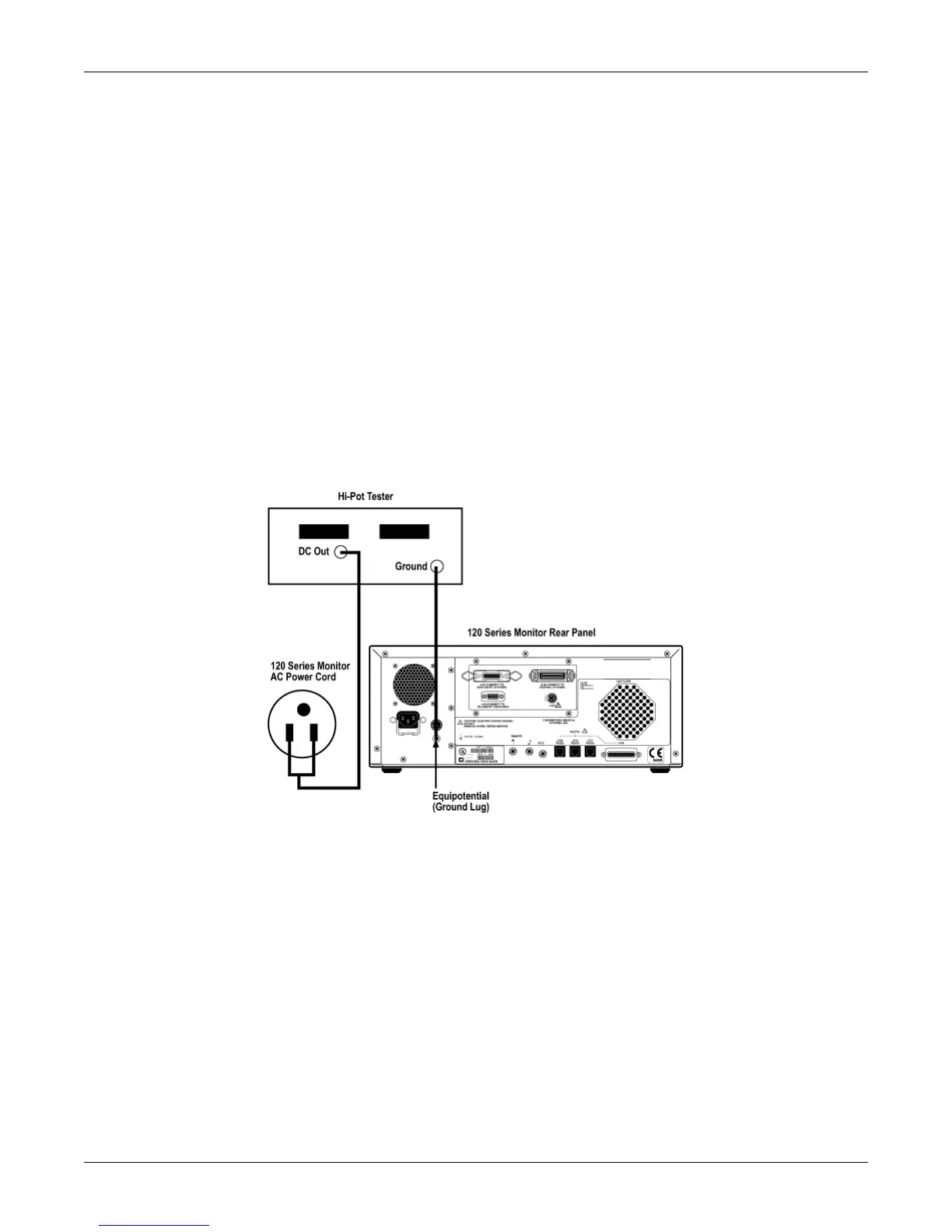

Figure 9-7. Mains–to–Chassis Using DC Voltage for One Minute (2.121 kVdc)
