Functional Checkout Procedure: Self-Test Routine
4. The recorder returns to its original on, off, or maternal-only mode state from
when the
Test pushbutton was depressed.
NOTE: To disable the test, depress the
Test pushbutton or open the recorder door.
NOTE: If the simulated fetal heart rate trends do not appear in the correct positions
on the strip chart recorder paper, ensure the monitor’s vertical scale setting
matches the type of paper being used, i.e. 30 BPM/cm or 20 BPM/cm.
(Refer to“Install Options Screen” on page 5-26.)

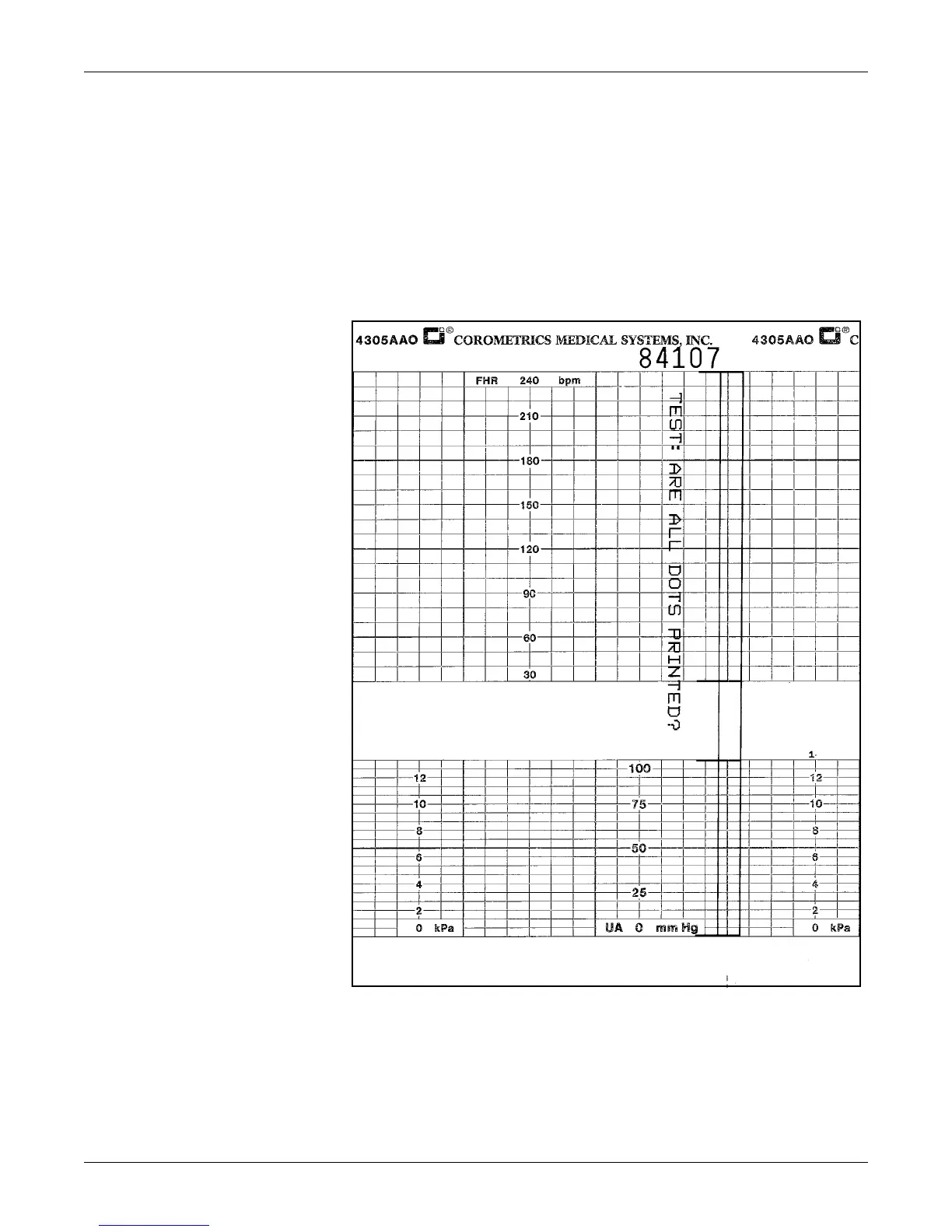

Figure 6-1. 120 Series Self-Test
