Upgrading a 120 Series Monitor: Nellcor MSpO2 and NBP Option Upgrade Kit
49. Fill out the Update Installation Verification Form included in the kit. Be sure to
include the monitor’s serial number and catalog number on the form. Follow
the instructions to fax the form to GE.

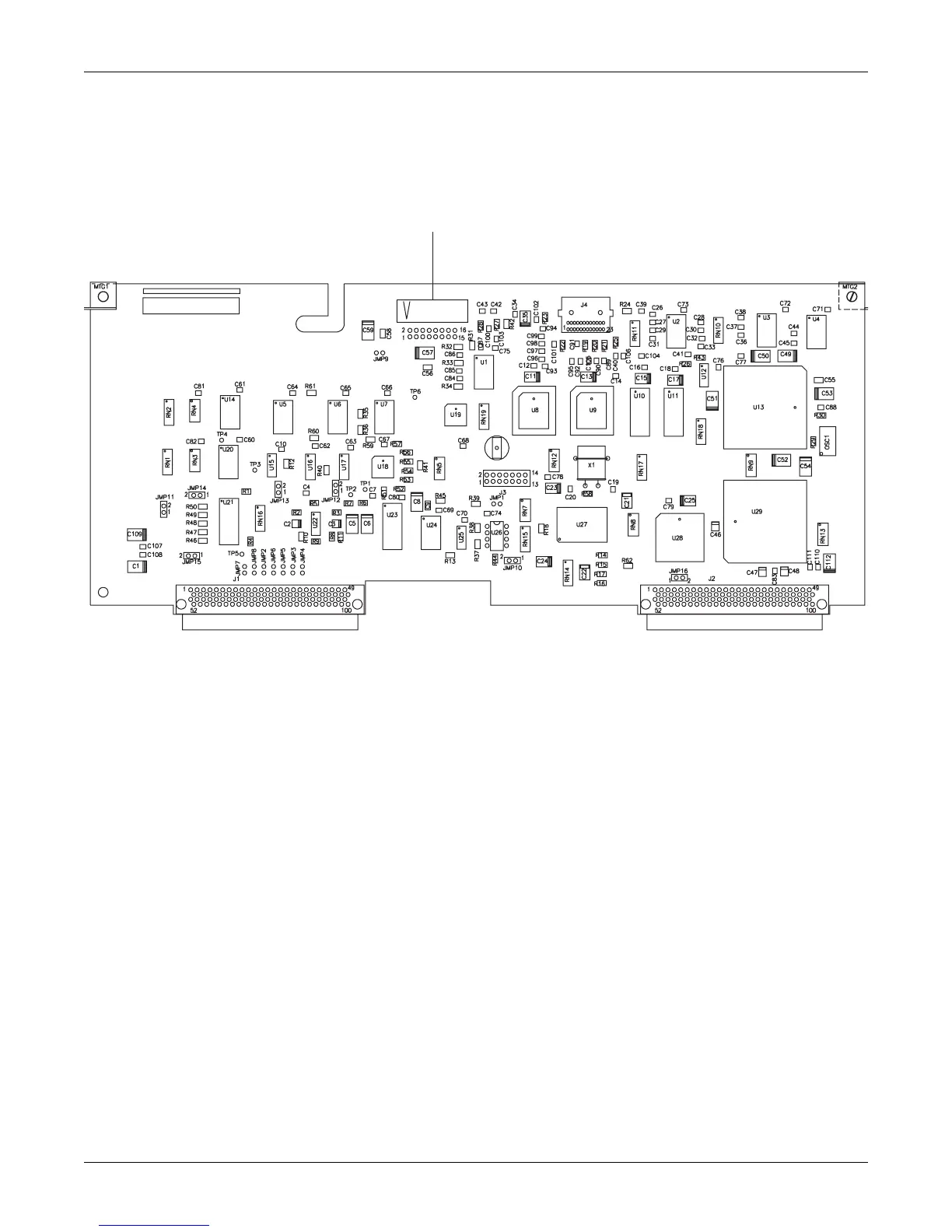

Figure 12-4. DSP Board
J5
Display Connector
