Upgrading a 120 Series Monitor: MECG Option Upgrade Kit
17. Use the Trim Knob control to access the
MHR/P Setup screen, then select MECG as the source. (Refer to Figure 12-27.)
18. Exit the setup screen, then verify that the
MECG parameter title displays.
(Refer to Figure 12-28.)
19. Fill out the Update Installation Verification Form included in the kit. Be sure to
include the monitor’s serial number and catalog number on the form. Follow the
instructions on the form to fax or mail the form to GE
.

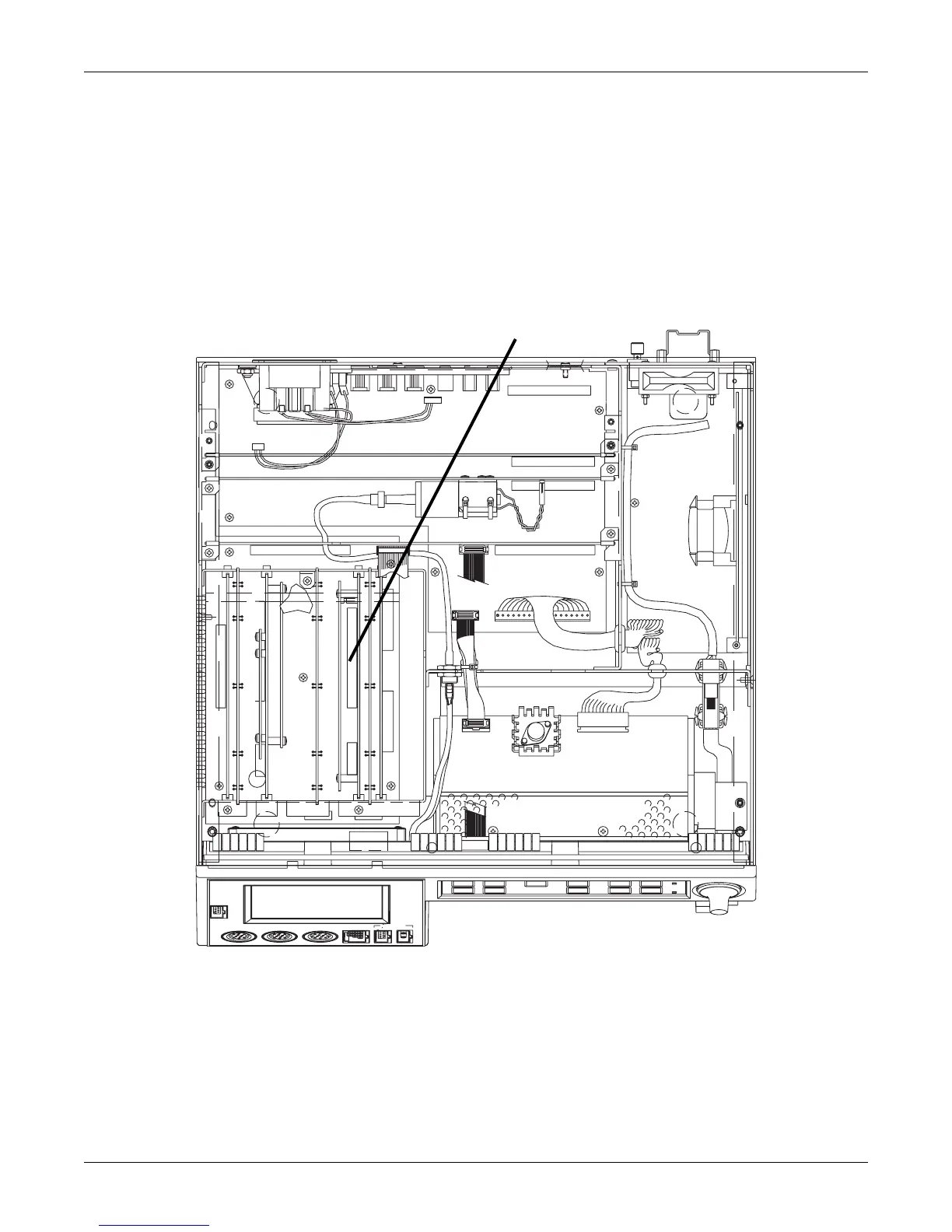

Figure 12-22. UA/FECG Board
J5
A
MATER
Sp
FECG/M
U
US
U
J6
J4
J10
J1
J7
J2
J1
J2
J9
J1
UA/FECG Board
Top View
