GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card TSG A015 - Lift Movement Troubleshooting
Table 1 provides a summary for quickly identifying the type of Lift Screw Assembly that is installed in the
Gantry.

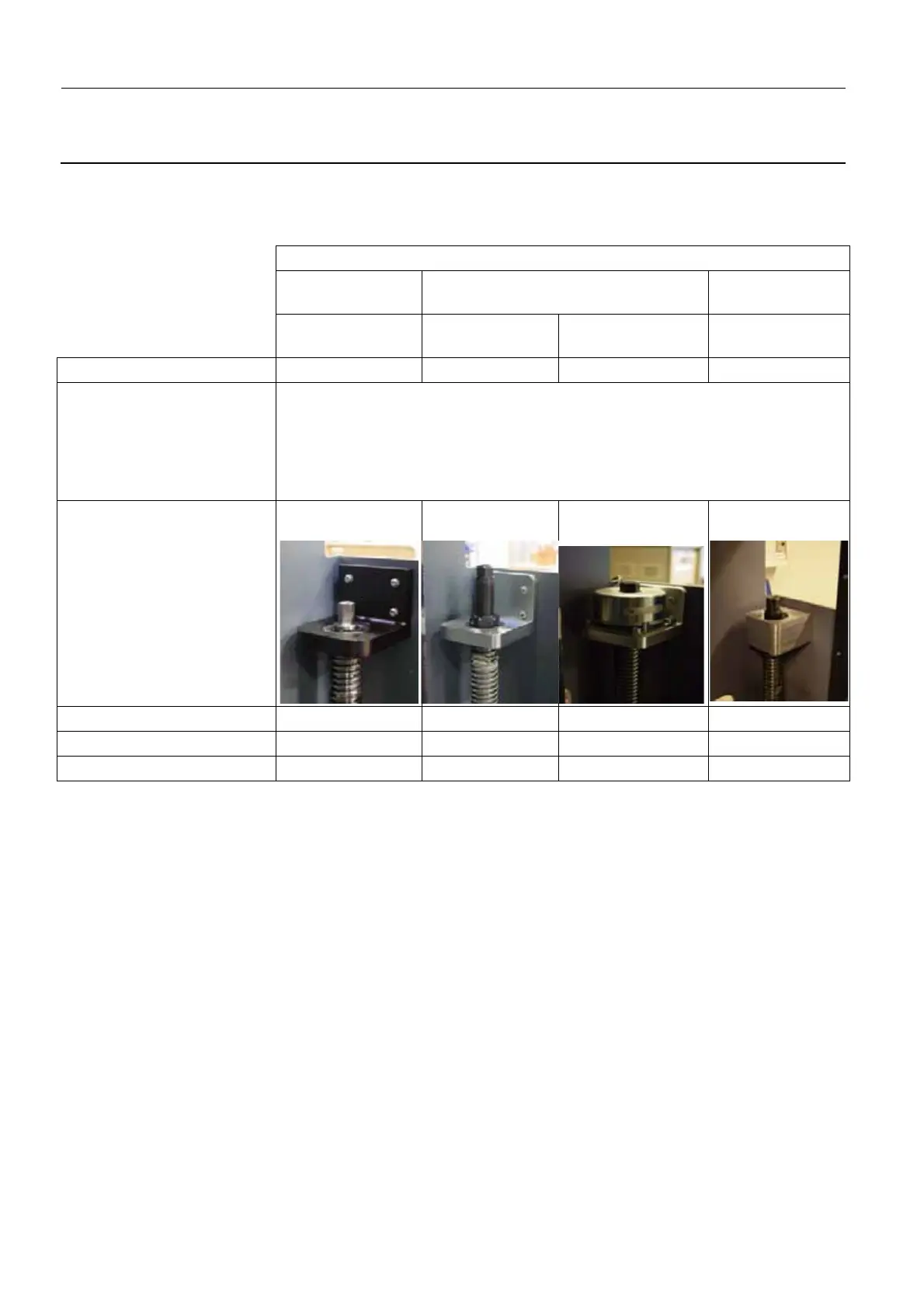

TABLE 1 - LIFT SCREW ASSEMBLY TYPE IDENTIFICATION QUICK GUIDE
When troubleshooting the lift it is important to identify which type of Lift Screw Assembly is installed in
the system.
If you do not have a Type 3 Lift Screw Assembly (June 2011 and later), you will have to consult your ser-
vice records to see if a Type 1 or Type 2 Lift Screw Assembly has been changed for a later type, and if
the service records are not clear you will need to remove the Gantry column covers to observe the
bracket at top of the Lift Screw Assembly and determine the Lift Screw Assembly Type installed accord-
ing to Table 1.
1-2-2 FRU Compatibility Matrix Depending on Lift Screw Assembly Type
Table 2 on page 1039 describes how the existing Lift FRUs can be applied/ordered for depending on the
Lift Screw Assembly type installed in the Gantry. For more information on the different Lift Screw Assem-
bly types, see section 1-2-1, Identifying Lift Screw Assembly Types on page 1036.
Lift Type in Install Base System
Type 1
(No brake)
Type 2
(Top brake compatible)
Type 3
(Brake motor)
Type 2a
(no top brake)
Type 2b
(with top brake)
Manufacturing Date pre-January 2008 January 2008 January 2008 June 2011
Physical Identification
Method
(required on Type 1 or Type 2
systems to know if Lift Screw
Assembly upgraded to newer
type)
Bracket at top of Lift Screw
Assembly
Black with no
threaded holes
Silver with
threaded holes
Black with no
threaded holes
Silver with no
threaded holes
Motor power cable YES YES YES YES
Motor earth cable NO YES YES YES
Motor brake cable NO NO NO YES
