GE Senographe DS User Manual

Chapter 9 Page no. 1290
JC-DR-A-243.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A243 - Compression Potentiometer and Cable
6 PROCEDURE
6-1 Disassembly of the Potentiometer
1. Disconnect the Potentiometer cable (W303) from the Compression Board (connector J6).
2. Release the screw securing the extremity of the position detecting wire (1) (3 mm Allen wrench).

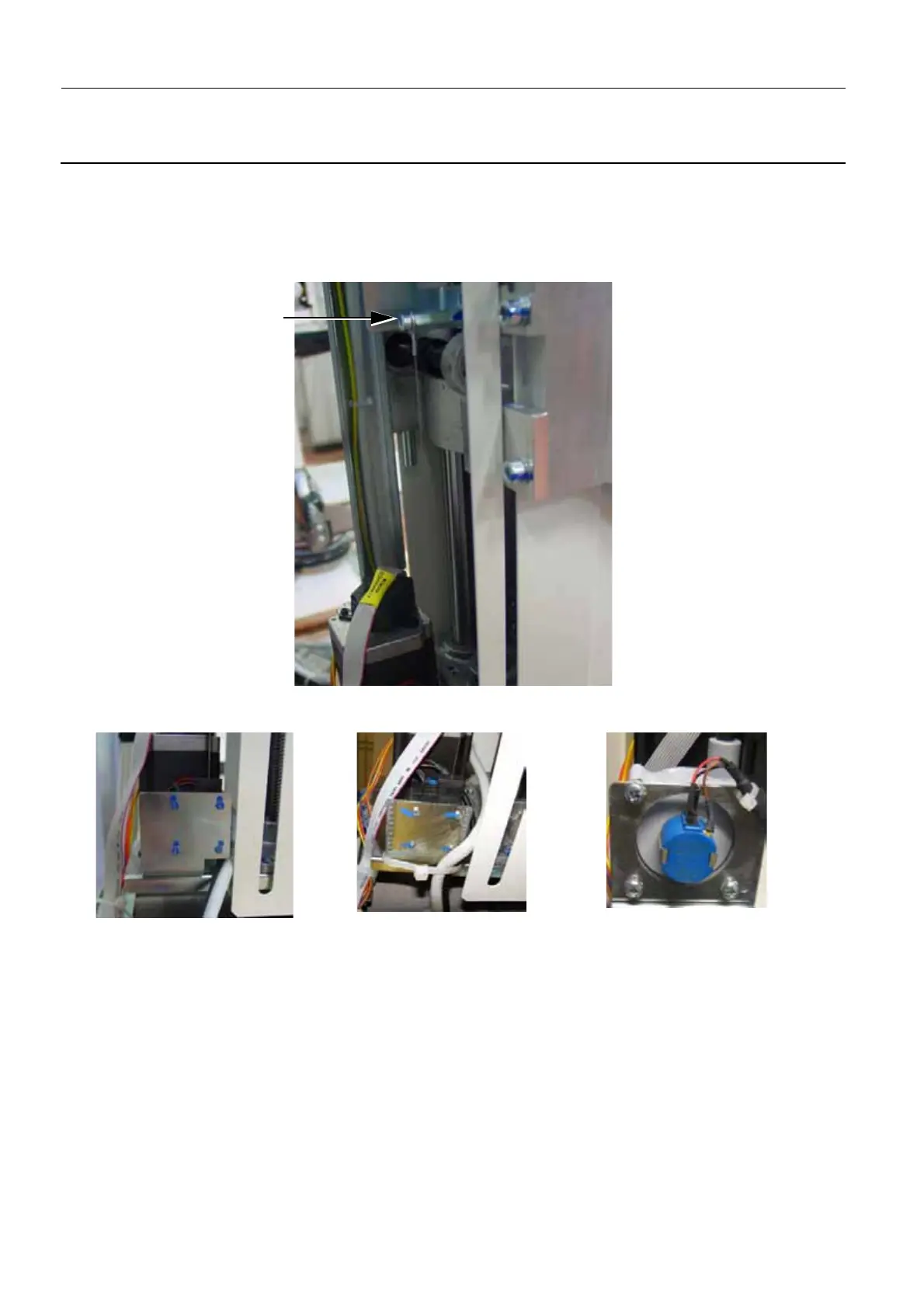

3. Identify the type of Compression Potentiometer currently installed (see illustration below) to deter-
mine your next step.
Determine your next step:
• If you have a Type 1 or Type 2 Compression Potentiometer, go to step 6.
• If you have a Type 3 Compression Potentiometer, go to step 4.
4. Remove the screws (2) securing the Compression Potentiometer to the Compression Potentiometer
1
Type 1
Type 2
Type 3
