Job Card D/R A243 - Compression Potentiometer and Cable
Page no. 1291 Chapter 9
JC-DR-A-243.fm
Support (cross-head screwdriver).

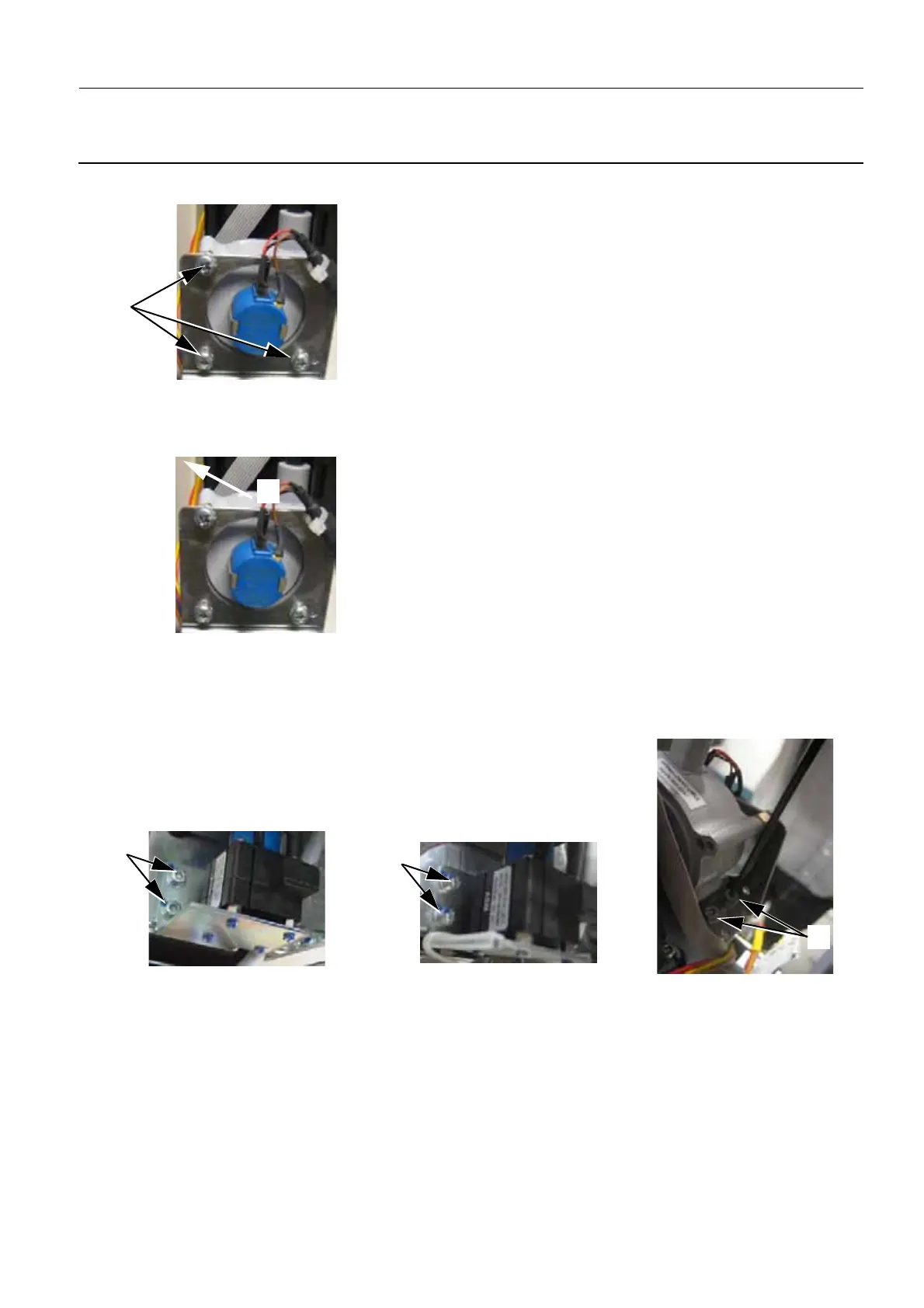

5. Remove the faulty Compression Potentiometer (3) from the Compression Potentiometer Support.
6. Remove the Allen screws (4) securing the Compression Potentiometer Support (3 mm Allen wrench).
Then remove the Compression Potentiometer Support plus Potentiometer (for Type 1/Type 2) or
Compression Potentiometer Support (Type 3) from the Compression Assembly frame.
(Step applicable for Type 3 Compression Potentiometers only)
2
3
(Step applicable for Type 3 Compression Potentiometers only)
Type 3
4
Type 1
4
Type 2
4
