Chapter 9 Page no. 1404
JC-DR-A-311.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A311 - AWS Unit
bracket, move the modem power supply to access the allen screw.
4. Reconnect the ground cable (screwdriver).
5. Reconnect all the cables to the AWS unit rear panel. Refer to ADS Rear Panel Connectors (Sun
SB150 Workstation) on page 1414 for a guide to cable connections.
6-3 Disassembly/Reassembly of AWS Unit on V3 Control Stations
6-3-1 Disassembly of AWS Unit

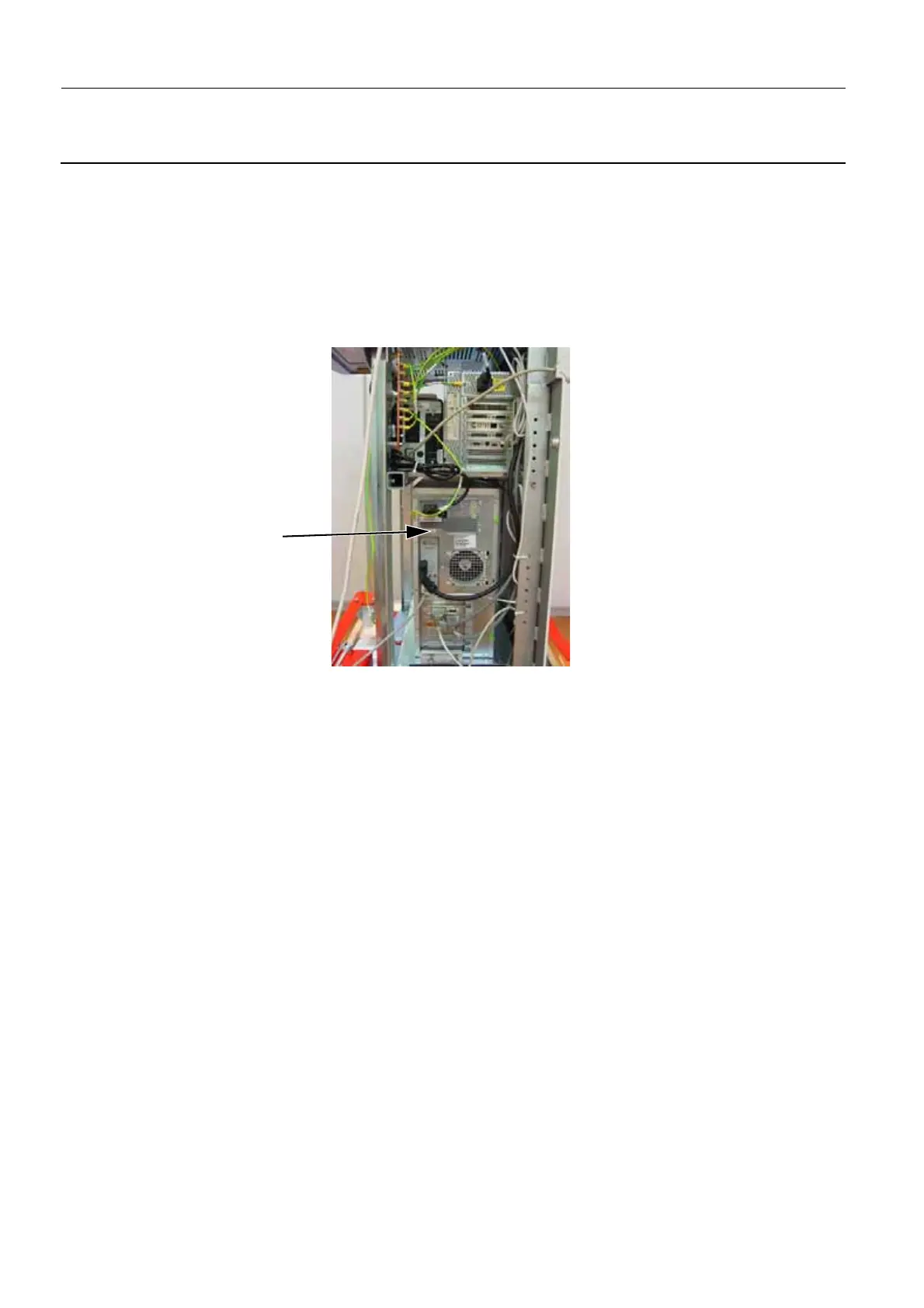

1. Locate the AWS unit (1) inside the Control Station.
2. Remove all the connected cables from the AWS unit rear panel.
Note:
Note locations of all disconnected cables.
3. Remove the ground cable (screwdriver).
4. Remove the two allen screws and associated bracket (2) securing the front of the AWS unit (4 mm
1
