Job Card D/R A311 - AWS Unit

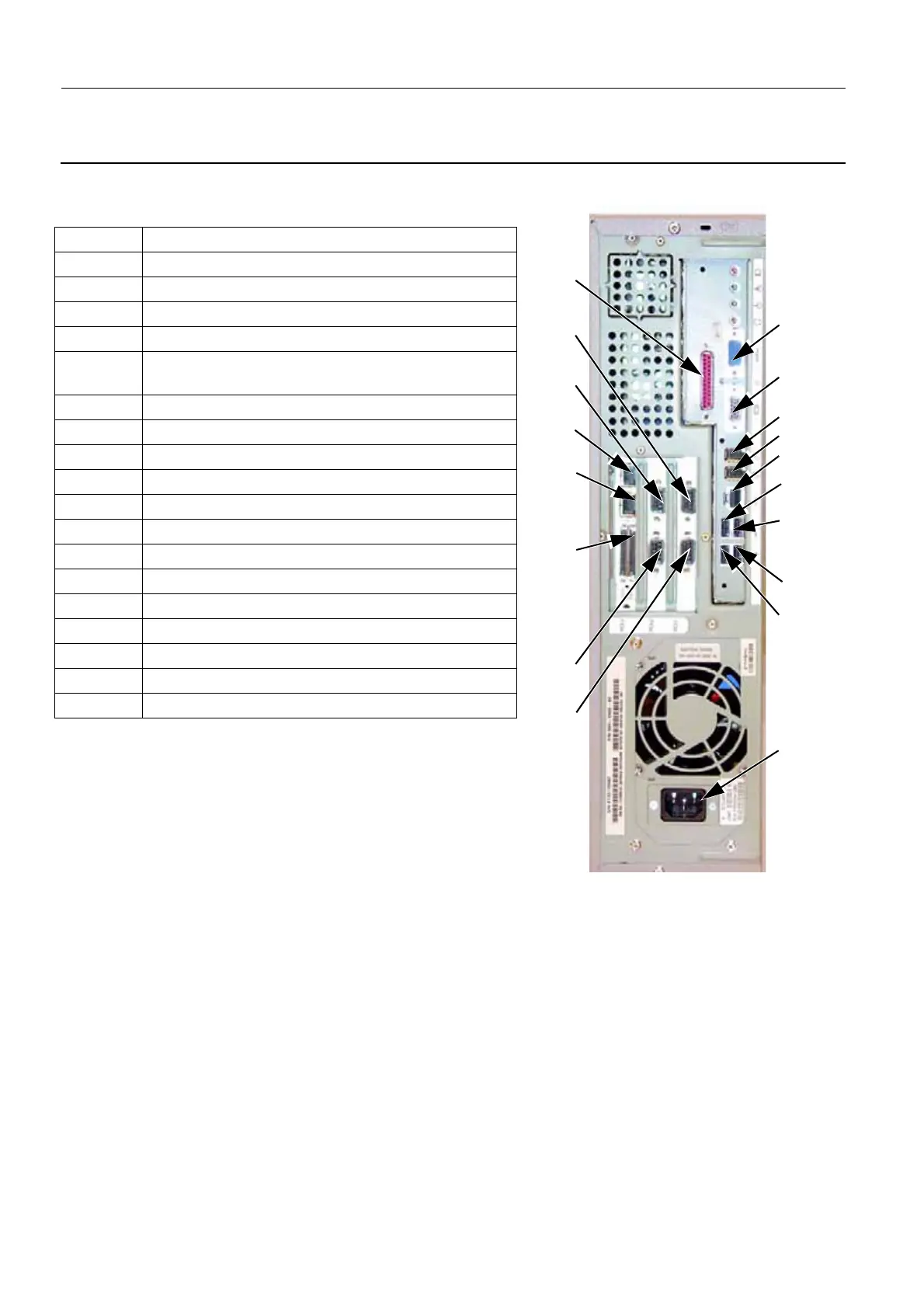

8 ADS REAR PANEL CONNECTORS (SUN SB150 WORKSTATION)
Reference Function
1 Not used
2 Generator Serial Link 2226625
3 Modem Serial Link
4 Not used
5 Internal Ethernet Switch (IDC, AWS, Gantry)
2389288
6 Not used
7 Not used
8 Service-specific cable
9 Generator-UPS-ADS Serial Link 2387162
10 Monitor VGA Cable 2390029
11 Not used
12 Not used
13 External Ethernet Link (to hospital network)
14 Mouse or Trackball USB Link
15 Keyboard USB Link
16 Bar Code Reader USB Link
17 Not used
18 AC input
9
10
11
12
13
1
2
3
5
7
14
15
16
17
6
8
4
18
