Job Card D/R A313 - Trackball
Page no. 1429 Chapter 9
JC-DR-A-313.fm
monitor support.

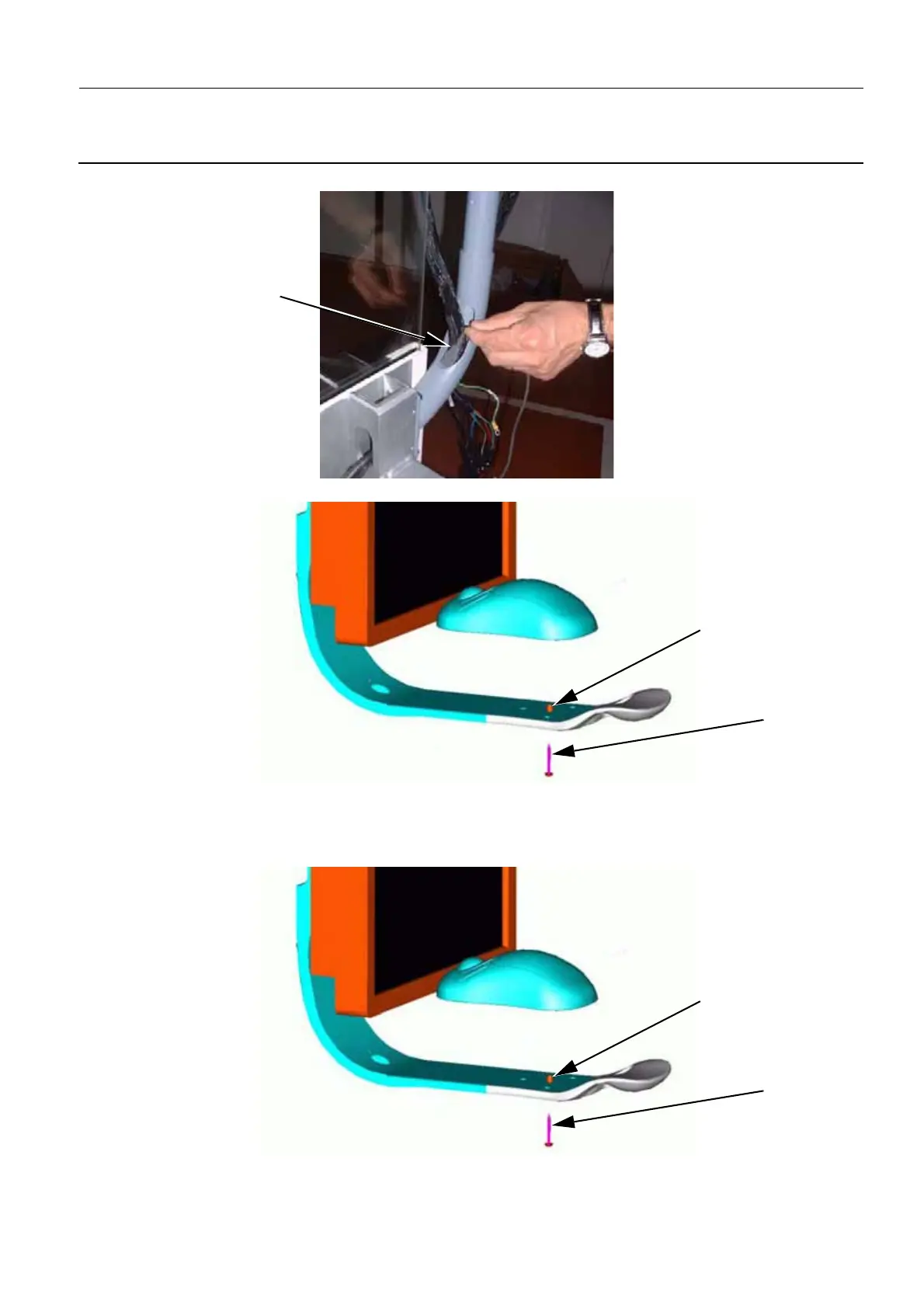

8. Release and remove the trackball securing screw (3) then the spacer (4), and remove the trackball.
7-2 Reassembly of New Trackball on Ergotron B Arm
1. Install and secure the trackball with the longest screw (1) (length = 38 mm) and spacer (2) that are
supplied with the Trackball Kit. The spacer must be located between the handle and the trackball.
2
3
4
1
2
