Chapter 9 Page no. 1580
JC-DR-A-407.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN

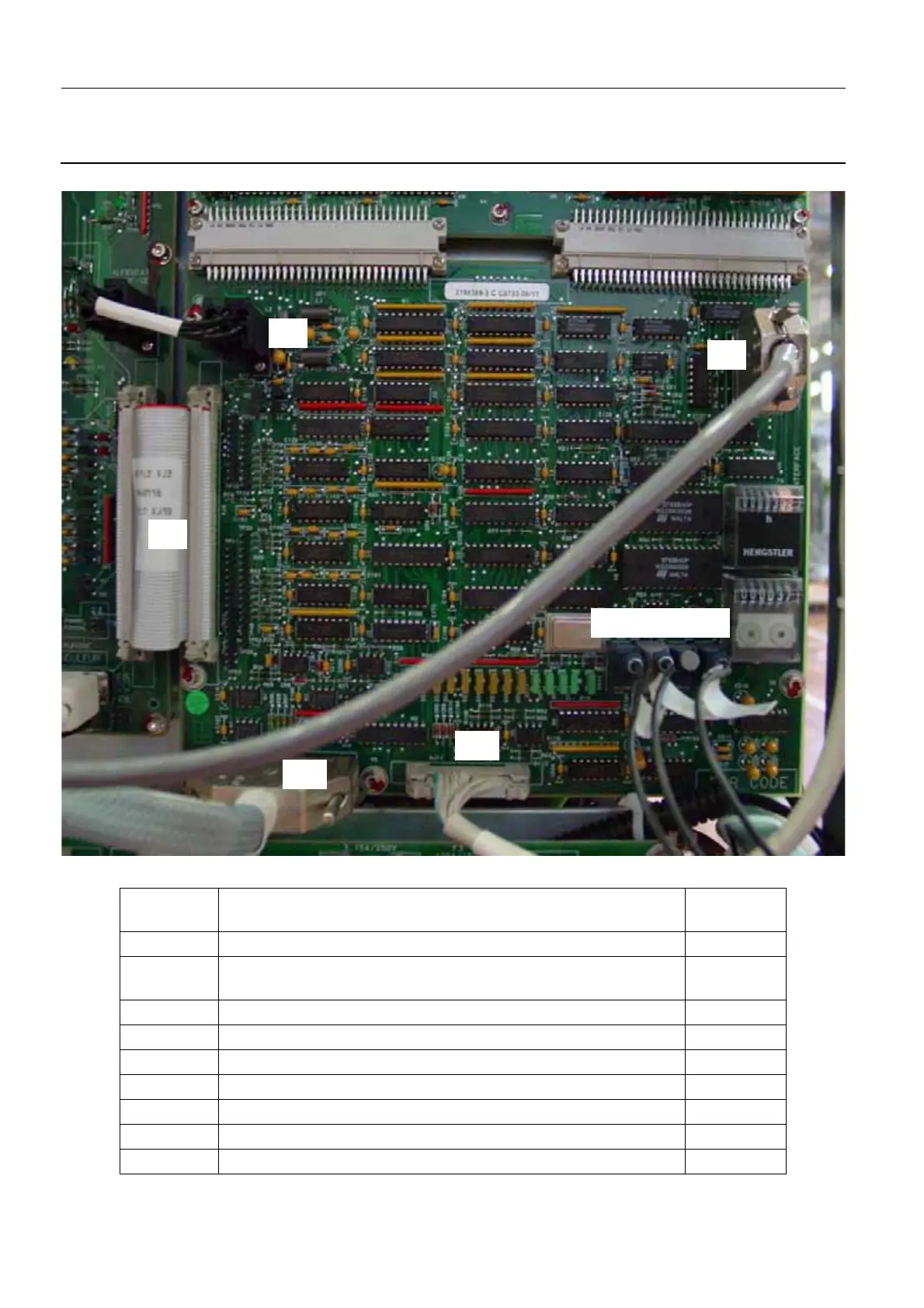

Job Card D/R A407 - Generator Interface Board 400-PL2
Connector
Label
Description of cable
(usually identified by code on a white label)
Cable color
XJ1 45440115 Black
XJ2 400 PL2 XJ2, 45440116, 400 PL1 X10
(red line on top of ribbon connector)
Gray
XJ4 XJ4 GENE 400 PL2 Gray
XJ6 400 PL2 XJ6 (optical fiber) Black
XJ7 400 PL2 XJ7 (optical fiber) Black
XJ8 Empty (optical fiber blank cover) N/A
XJ9 400 PL2 XJ9 (optical fiber) Black
XJ10 XJ4 GENE 400 PL2 Gray
XJ11 XJ11 - 400PL2 GENE. INTERF. Gray
XJ1
XJ2
XJ4
XJ10
XJ11
XJ6 XJ7 XJ8 XJ9
