GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PM A205 - Mechanical checks and lubrication
Page no. 1781 Chapter 11
JC-PM-A-205.fm
6-3 Check and lubricate the rotation mechanism
6-3-1 Position the arm for access

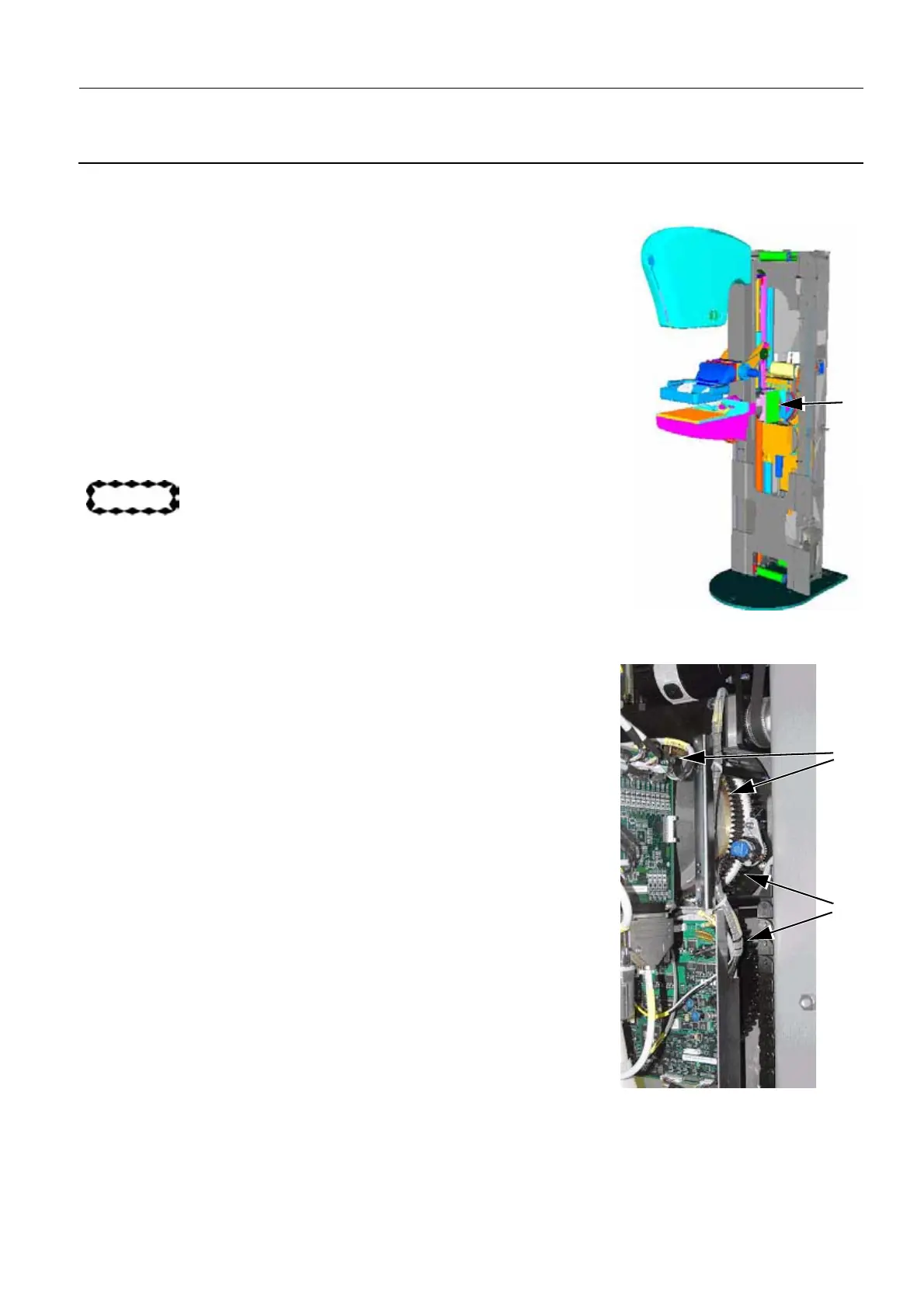

• Lower the arm for good access to the rotation gears (1).
• Switch OFF the Gantry power.
CAUTION
The following procedures require power to be applied, in
order to rotate the arm for access to the gears.
After positioning the arm, be sure to switch off all power
when you are inspecting or greasing the gears.
6-3-2 Inspect the gears
• Locate the meshing teeth of the worm and worm gear (2), and the
pair of spur gears (3).
1
2
3
