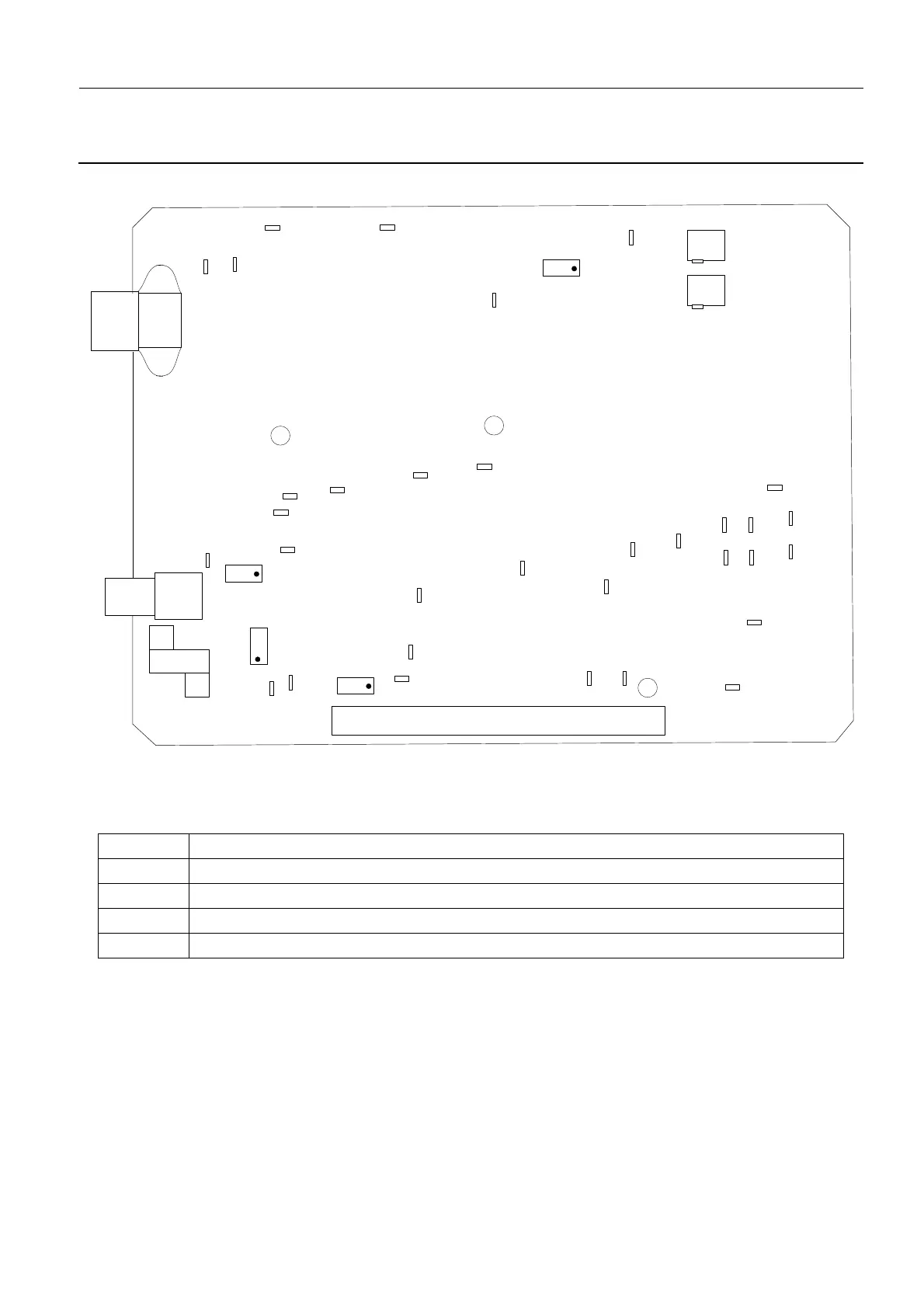

2-9. kVmA Board 7001PL1
2-9-1. kVmA Board 700PL1 Connectors
Connector Function
XJ1 To XJ5 connector on Generator Command Board 400PL1 (HV Tank control)
XJ2 To HV Tank (mA feedback)
XJ3 To HV Tank (kV measure)
XJ4 Test 62 kV (testing input)
XJ4
XJ3
XJ2
XJ1
TP1
TP4
TP6
TP12
TP11
TP17 TP19
TP18
TP15
TP20
TP24
TP25 TP27
TP26
TP30
TP31
TP22
TP16
TP2
TP3
TP21
TP10
TP7
TP5
TP8
TP9
TP13
TP14
TP28
TP29
TP23
DS3
DS2
DS1
SW1
SW2
P5
P2
P3
P1
MES_MA_NG
MES_MA_POS
