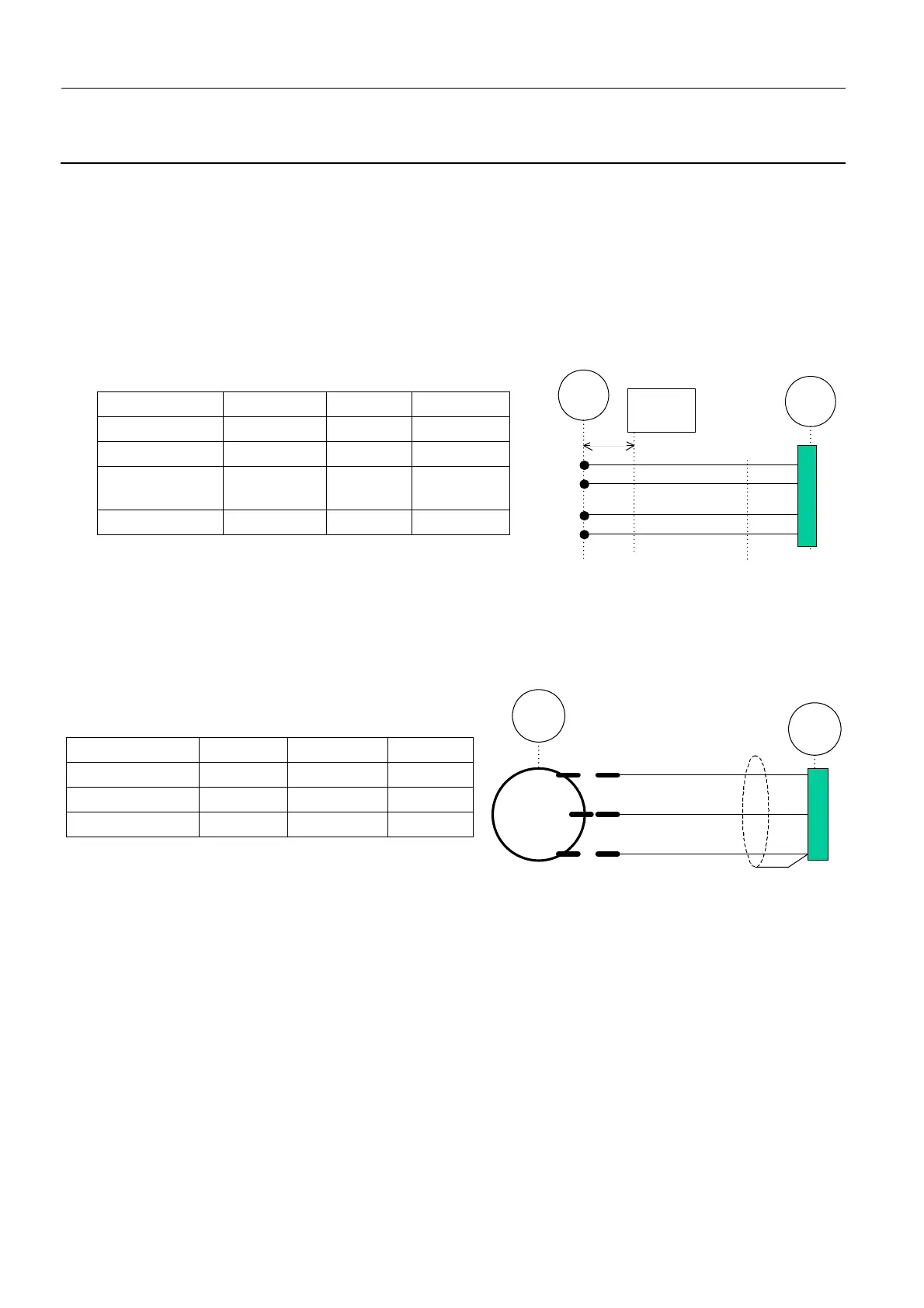

Cable Lay-out and Pin-out
1-26. W127 - EMC Filter
EMC filter E101 to Terminal block ST101.
1-27. W129 - Terminal Block Interconnection
Terminal Block Interconnection from X4 P’ to B2/1.
1-28. W201 - Lift Optical Fork Connect (Upper)
Lift Board PL201 J4 to opto detector S201:
1-29. W202 - Lift Optical Fork Connect (Lower)
Lift Board PL201 J5 to opto detector S202.
1-30. W203 - Lift Potentiometer
Lift Board PL201 J11 to potentiometer R201:
1-31. W204 - LCD Connect
Lift Board PL201 J15 to LCD DS201.
Designation Type Level Pin N°
VCC_Led_1 VCC 5 V J4-1
GND Ground 0 V J4-2
Fork_Opt_Out_
1
Open coll. 0 / +5 V J4-3
GND Ground 0 V J4-4
Designation Type Level Pin N°
VCC VCC 5 V J11-1
Pot. Analog. 0 / 5 V J11-2
GND Ground 0 V J11-3
A
K
J4W201
2345937
1
2
E4
3C
S201
300
Vcc
Vout
J11
1
2
3
GND
R201
