Chapter 6 Page no. 458
JC-PHY-A-014.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A014 - Connect Gantry to Control Station

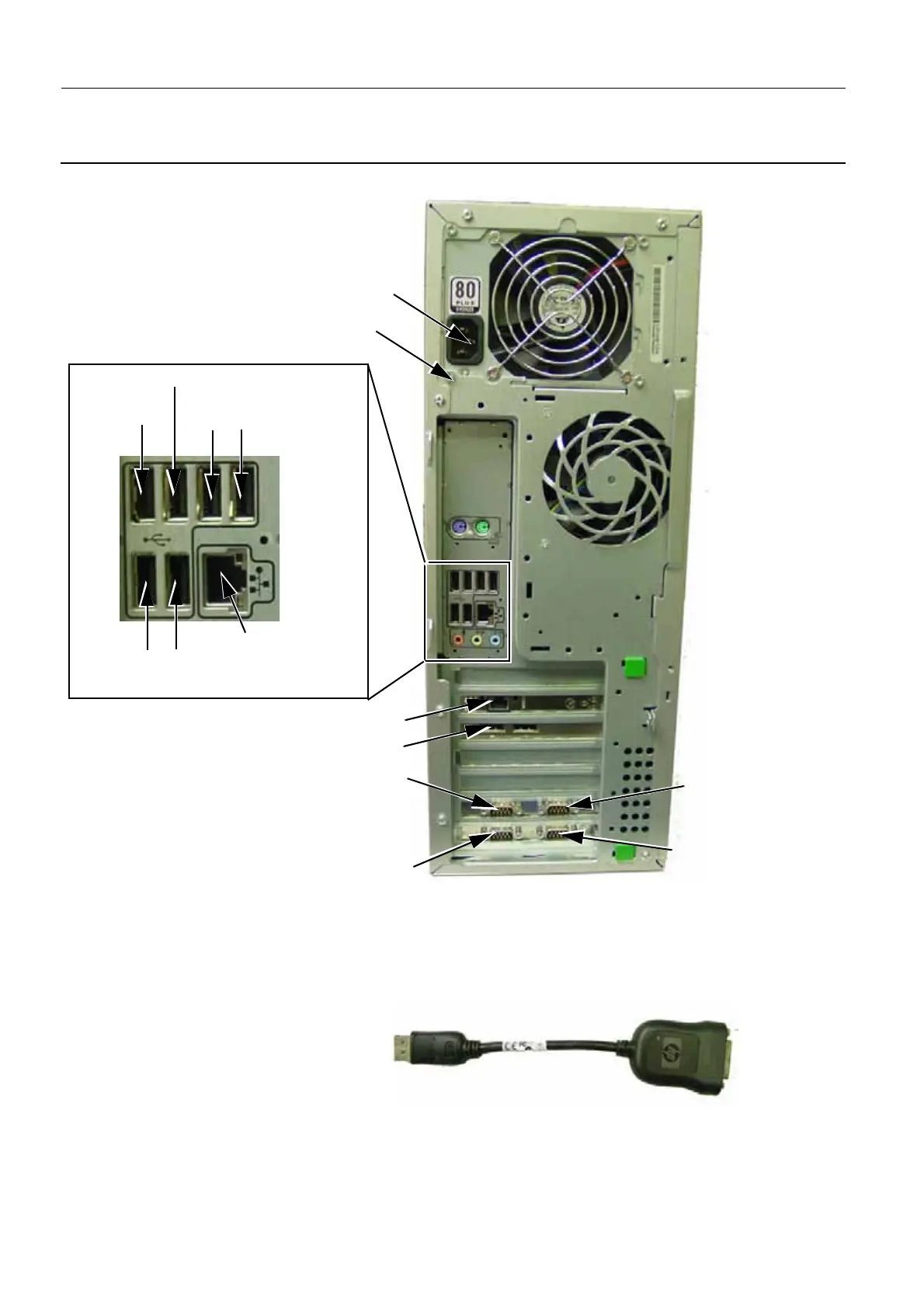

ILLUSTRATION 1 - ADS REAR PANEL CONNECTIONS
Empty
Ground
Note: Ensure that the monitor DVI cable is connected to the left hand side display port (number 1) on the
back of the ADS computer. The monitor DVI cable must be connected to the display port via a DVI-I - dis-
play port adaptor cable shown below.
Mouse
Keyboard
Bar Code
Empty
Scanner
Empty
AC input from UPS
Ethernet cable to
internal switch
(2389288-2)
Ethernet cable to hospital network
Monitor Cable via DVI-I adaptor
12 – DB9 Generator serial link (2226625)
11 – DB9 UPS
serial link (2387162)
DB9 Service Key link
To Next Page
