Job Card PHY A030 - Generator and Gantry Disconnection Reconnection
Page no. 495 Chapter 6
JC-PHY-A-030.fm

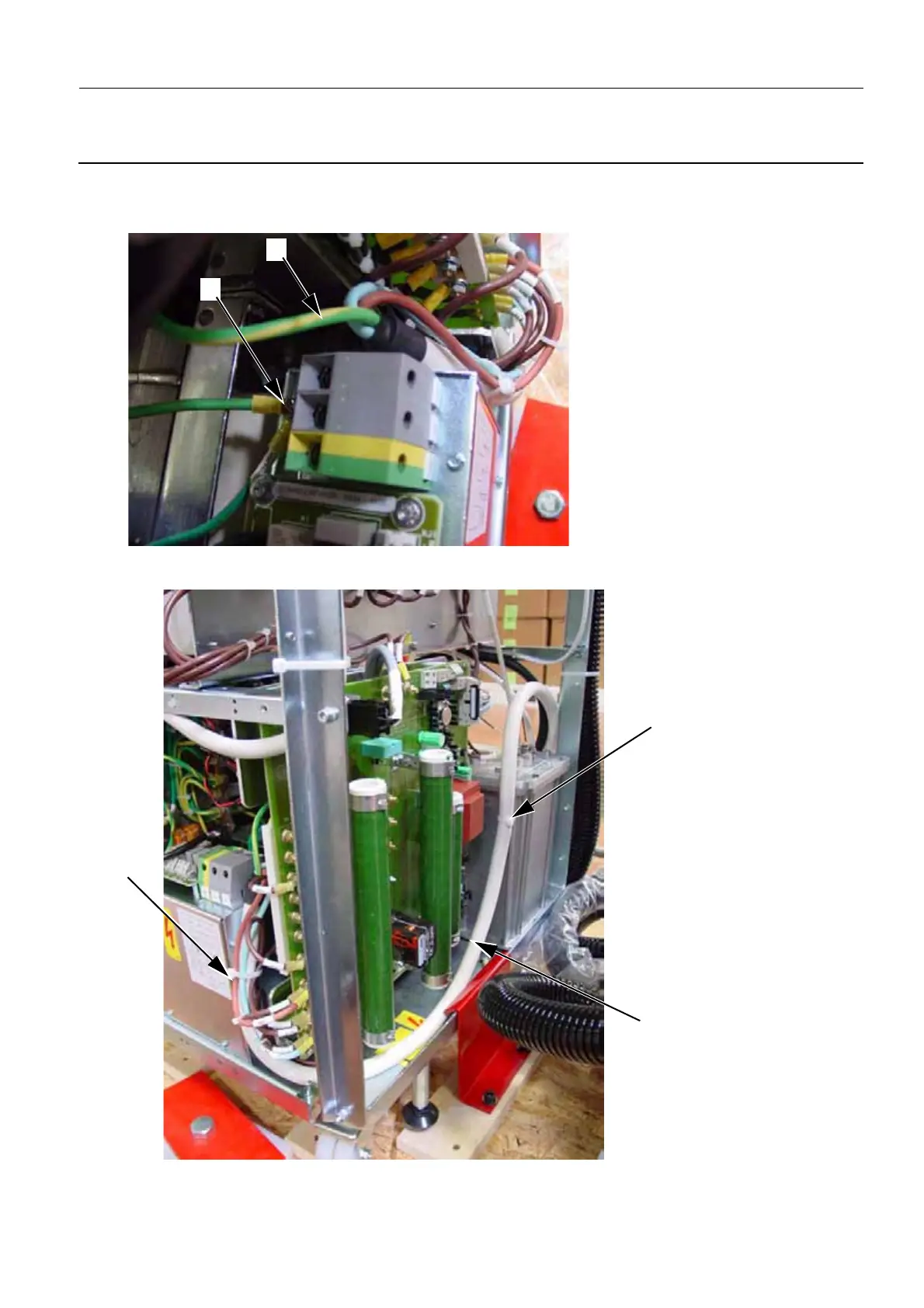

7. At the back of the Power Line Filter Box, connect the Earth cable (6) to the earth connector (5) (8 mm
open-ended wrench). The Earth cable originates from the white Gantry AC Supply cable (
labeled
2381711).
8. Ensure that the white Gantry AC Supply cable (
labeled 2381711) (7) is routed as shown below. Use
cable ties to secure it to the HV Unit (8) and the cables near the Power Line Filter Box (9).
5
6
9
8
7
To Next Page
