GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A022 - Declare Network Hosts
Page no. 665 Chapter 7
JC-ELE-A-022.fm
7-2 Declaration of a New Host
To remove a host from the List of Registered Hosts perform the following steps:

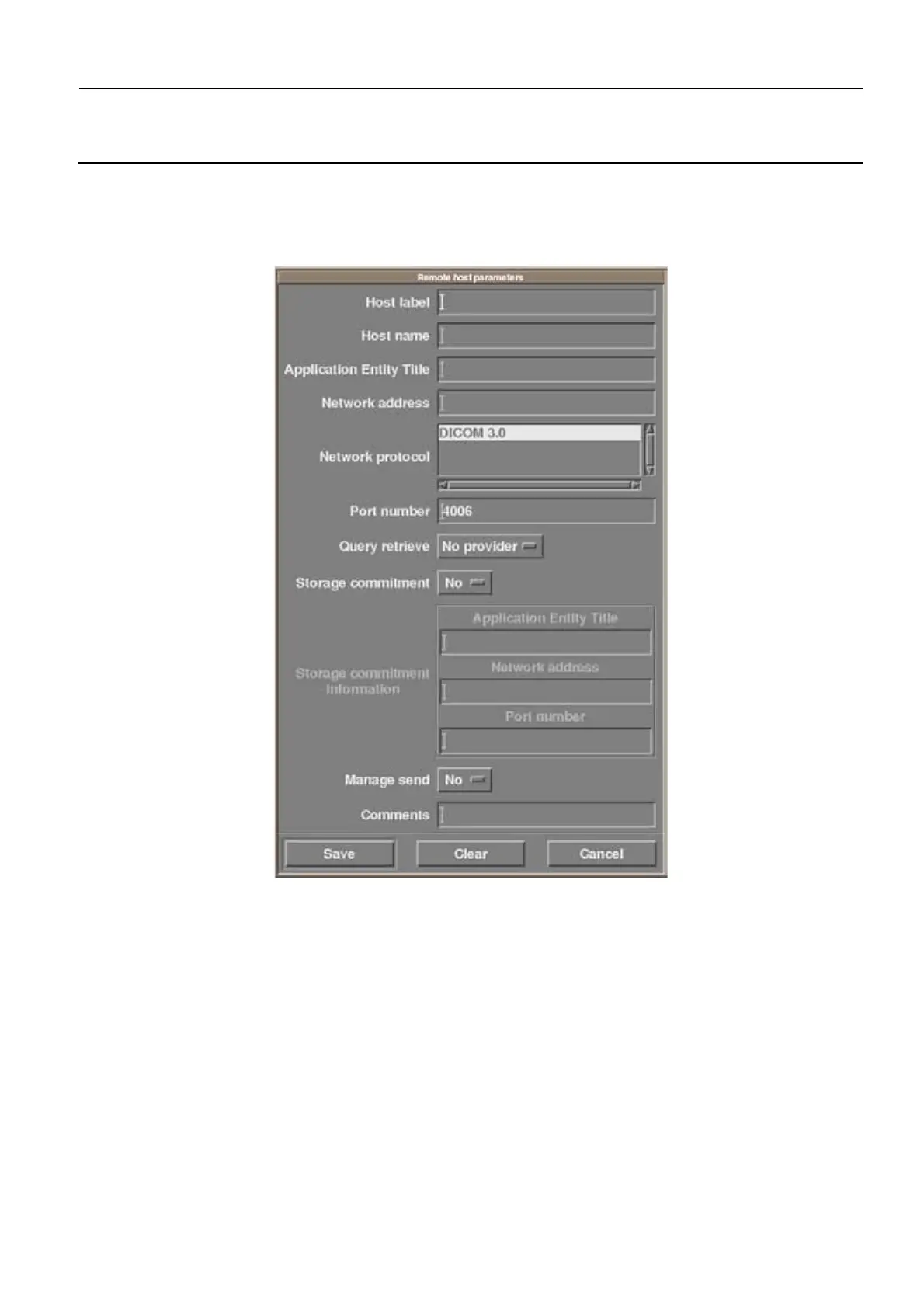

1. Click the Add button in the Remote host selection window. The Remote Host Parameters window
like the following appears.
Complete the fields in the Remote Host Parameters window according to the information received
from the network administrator and the remote host device DICOM 3.0 Conformance Statement.
2. The following fields must be completed for all types of remote host devices (review workstation, Non-
Storage Commitment capable Archival device, and Storage Commitment capable Archival device):
- Host Label: Enter the name you want to give to the icon that will represent the remote host
- Host Name: Enter the host name provided by the hospital network administrator.
- Application Entity Title: Enter the Application Entity Title (AET).
- Network Address: The network address can be local (see Job Card ELE A021 - Networking Con-
nection and Configuration on page 625), or provided by the hospital network administrator.
- Network Protocol: Always select DICOM 3.0.
- Port Number: Refer to the device DICOM 3.0 Conformance Statement; normal value is 4006.
- Manage send must be is set to either No or Yes. The setting you must choose depends on the
type of host you are configuring. For more information, see Manage Send Settings on page 663.
