GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A042 - Bar Code Scanner (Option)
Page no. 717 Chapter 7
JC-ELE-A-042.fm
6-3 Configuration for V1/V2 Control Stations

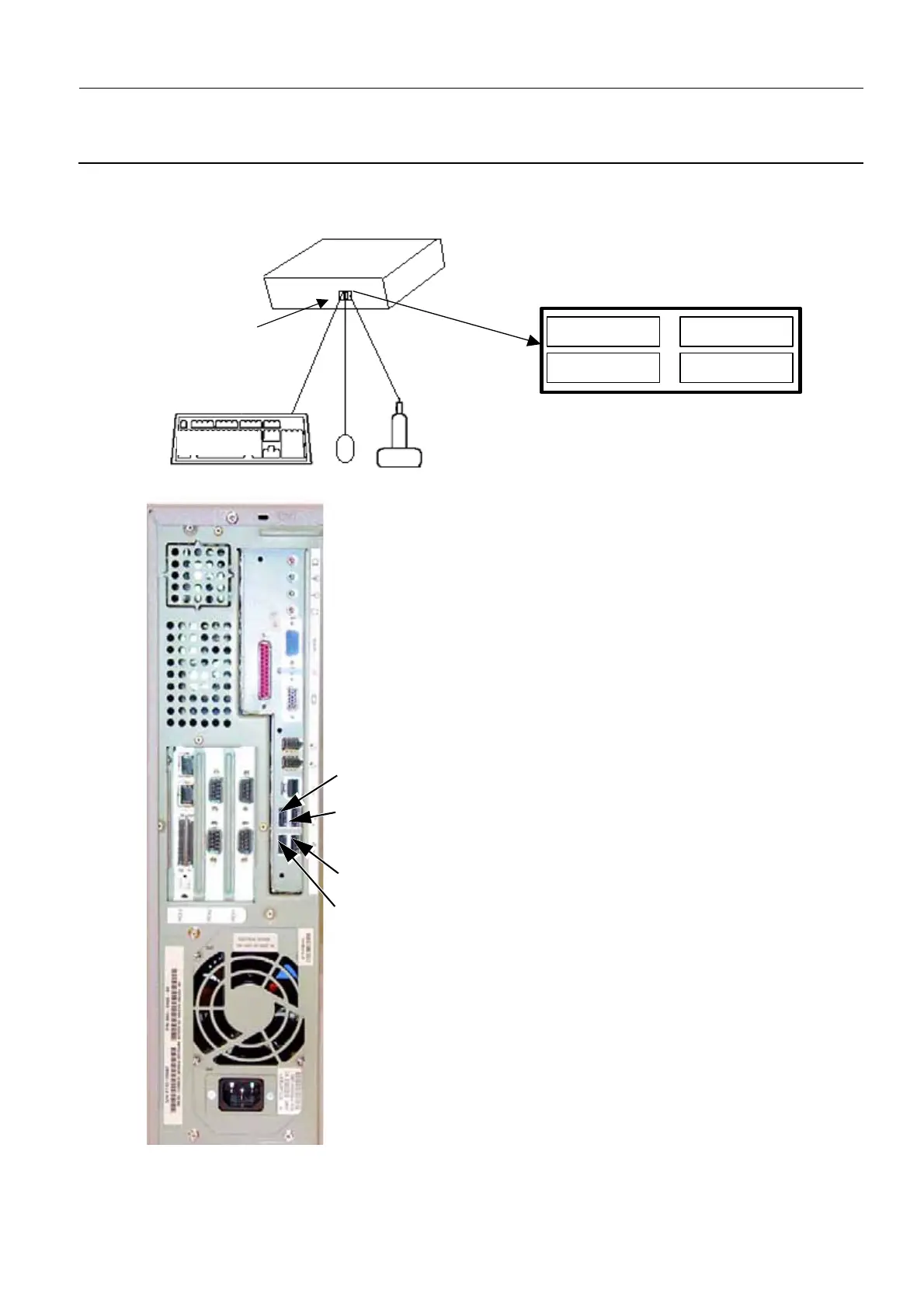

Refer to the diagram below when connecting the bar code scanner to V1/V2 Control Stations:
Respect the connections shown here;
incorrect connection may prevent boot
Keyboard
Bar Code Scanner
ADS SB150
station
USB connectors
Trackball
or mouse
Trackball or
Mouse
Free
KeyboardBar Code Scanner
Base of SB150
Top of SB150
Mouse or Trackball
Keyboard
Bar Code Scanner
Empty
