GE Senographe DS User Manual

Chapter 7 Page no. 718
JC-ELE-A-042.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A042 - Bar Code Scanner (Option)
6-4 Configuration for V3 Control Stations

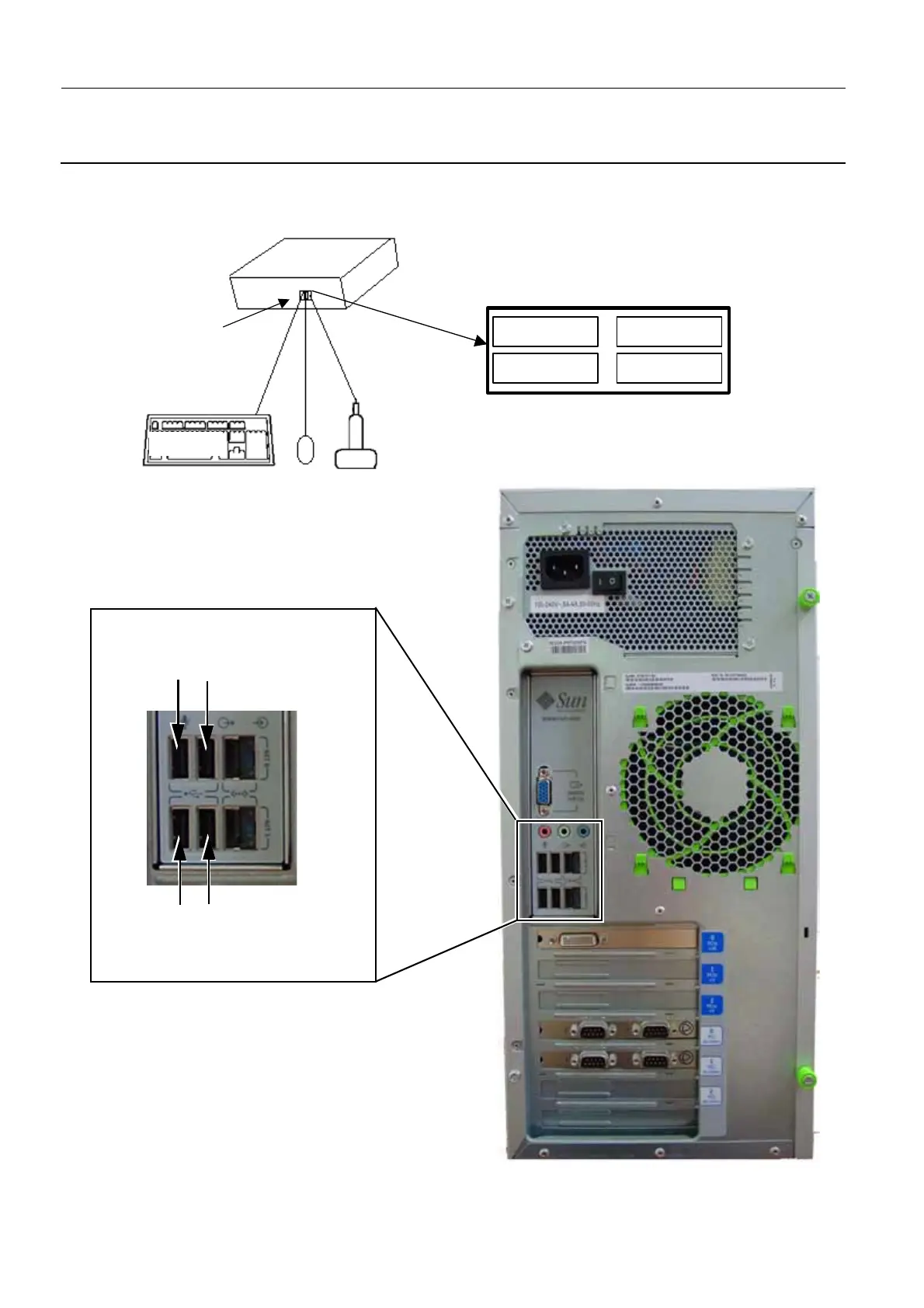

Refer to the diagram below when connecting the bar code scanner to V3 Control Stations:
Respect the connections shown here;
incorrect connection may prevent boot
Keyboard
Bar Code Scanner
ADS U20
station
USB connectors
Trackball
or mouse
Trackball or
Mouse
Free
Keyboard
Bar Code Scanner
Base of U20
Top of U20
Mouse
Keyboard
Bar Code
Empty
or
Trackball
Scanner
