GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A043 - AWS Monitor Calibration
Page no. 733 Chapter 7
JC-ELE-A-043.fm
5. If necessary, unlock the OSD (see section 7-2) and move the OSD to a convenient position (see sec-
tion 7-5).
6. Re-enter the Service level 2 menu again (as explained in steps 1 to 4 above).
7. From the Service level 2menu, keep pressing the MENU button so select the Calibration menu, and
press
the UP button to enter the Calibration menu.
8. In the Calibration menu, verify that the Lut Backlight command value is set to OFF and the Select dis-
play function is set to 4 LUT 1.
If these values are set not as recommended:
• change them by selecting it with the MENU button and change it to the correct value with the UP
button
• store the changed settings by pressing the SET button until Accept changes is selected, then
press the UP button to exit and save the settings.
9. Once the changed settings are saved, go to section 7-4 for the 18" monitor.

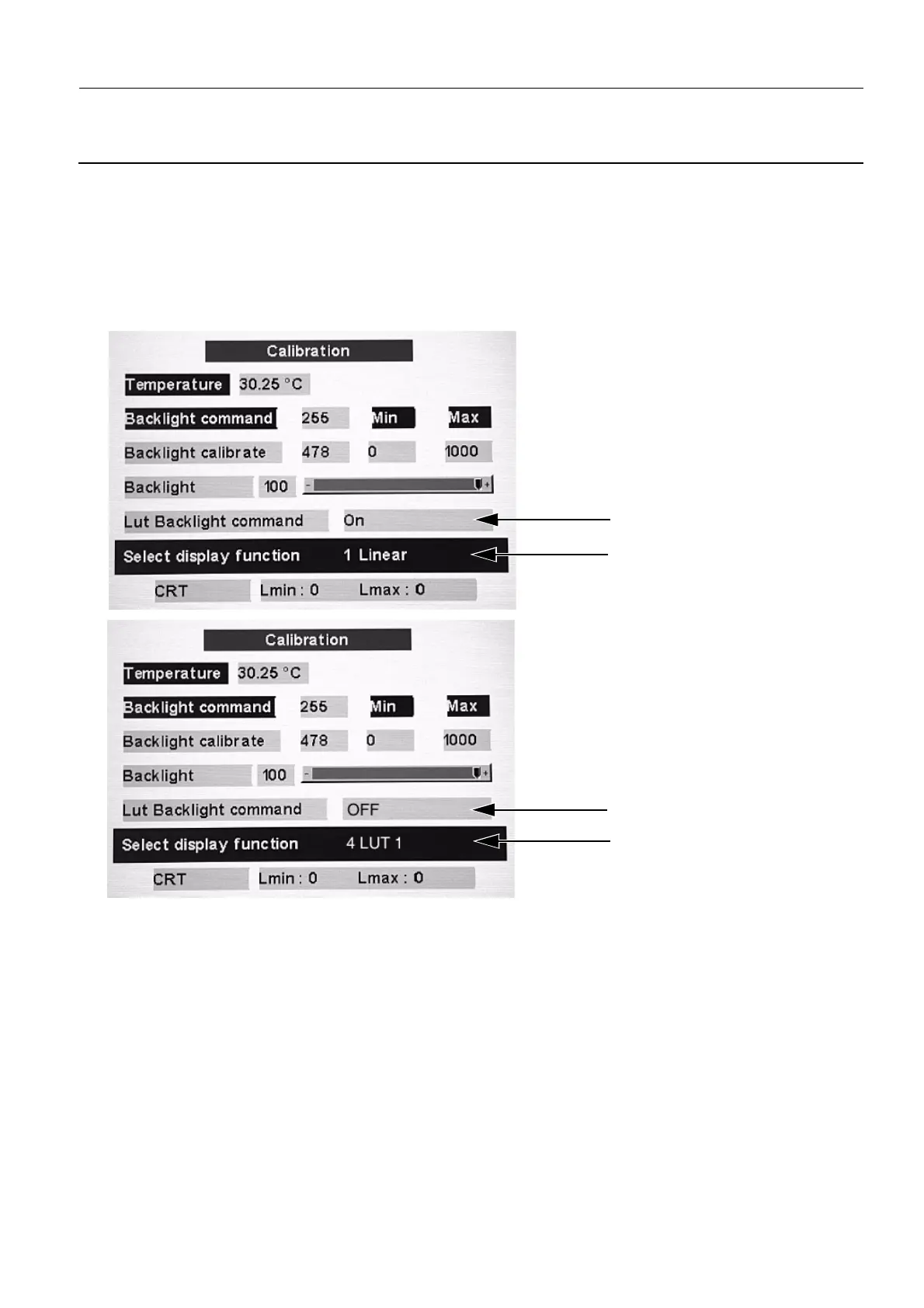

INCORRECT
INCORRECT
CORRECT
CORRECT
