GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A043 - AWS Monitor Calibration
Page no. 743 Chapter 7
JC-ELE-A-043.fm
8-2 Unlocking and Locking the On Screen Display (OSD) for 19" Monitors
If the message OSD Locked appears on the AWS Monitor when pressing any of the keypads, or if you

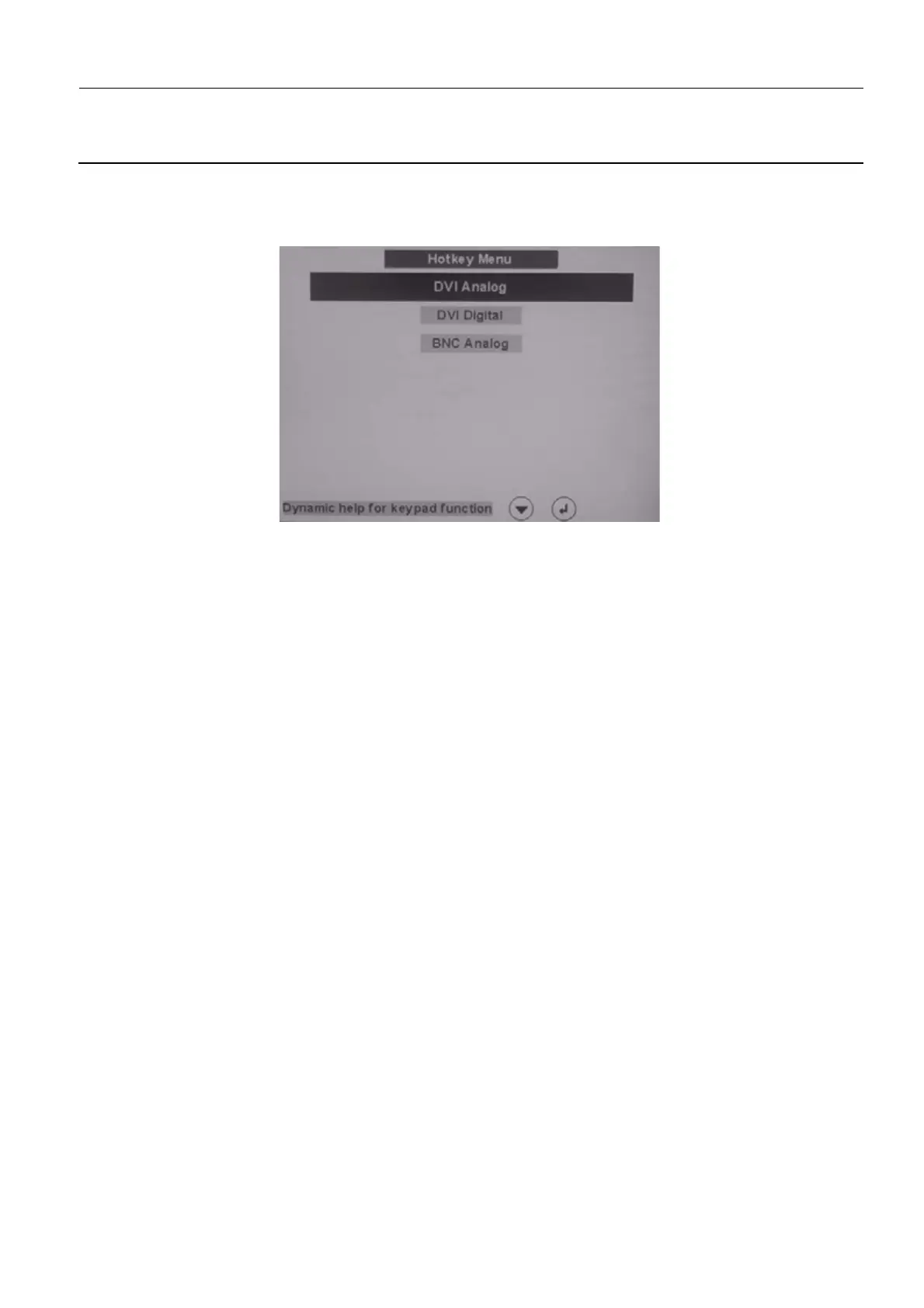

can only access the Hotkey menu (see image below) the monitor is locked.
You can unlock the OSD with the following button sequence:
• Press
the Key4 button once then press the Key2 button three times.
You can also use the same button sequence to lock the OSD.
• After unlocking the OSD, press
the Key1 button once to open ths OSD menu.
