Chapter 7 Page no. 742
JC-ELE-A-043.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A043 - AWS Monitor Calibration
8 19" MONITORS
The table below summarizes the steps required to calibrate an 19" Monitor.

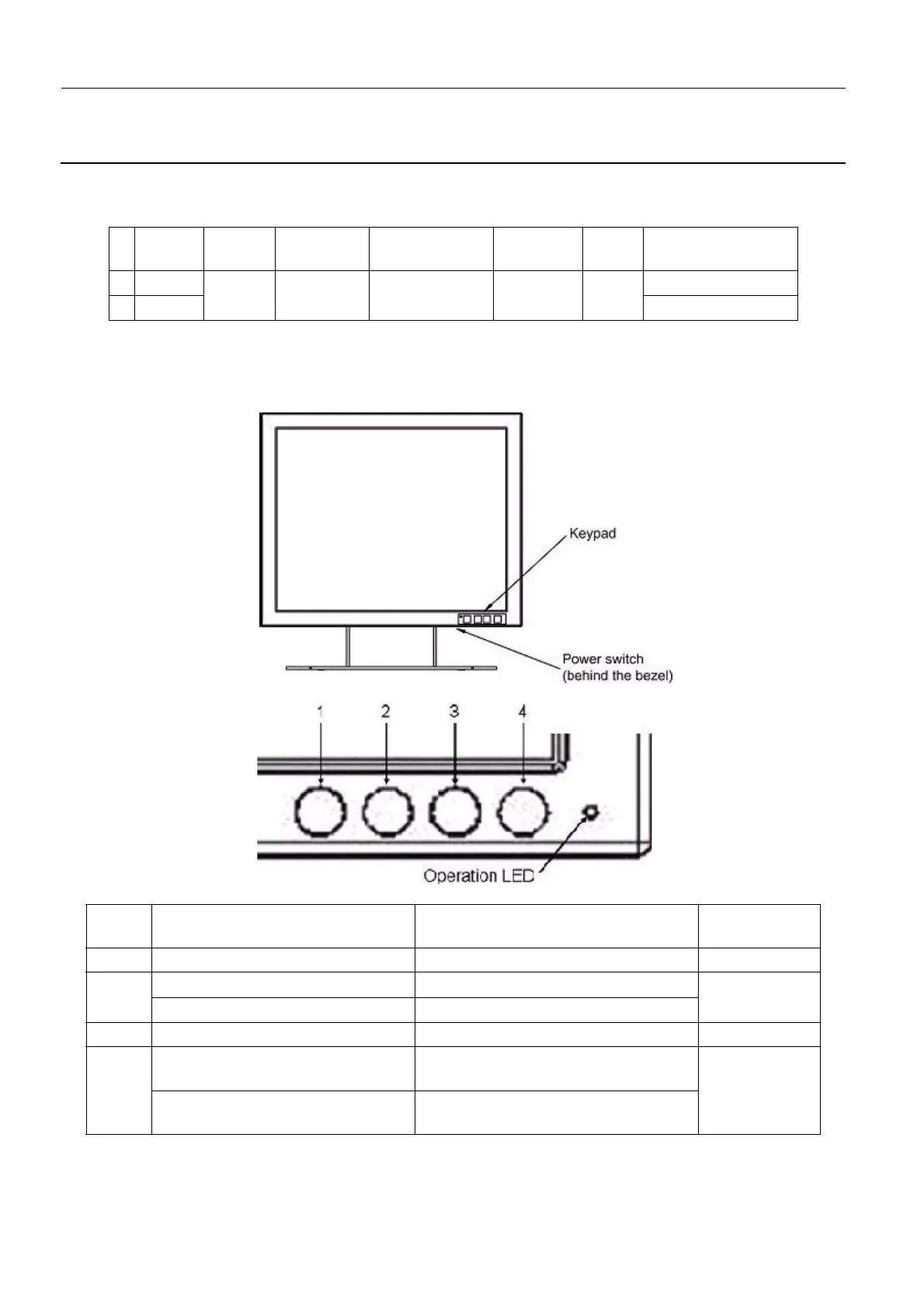

8-1 19" Monitor Keypad Usage
The monitor keypad at the bottom right corner of the monitor has four buttons, whose functionality is
summarized below.
Control
Station
Monitor
Keypad
Unlocking
OSD
Preliminary
Configuration
Display
SMPTE
Move
OSD
Calibration
1V3/V4 8-1 8-2 8-3 8-4 8-5 8-6-1
2V1/V2 8-6-2
Button Case Action Reference in
this Job Card
1 Always Scroll Key1
2 Submenu is highlighted Select the submenu Key2
Function is selected Increase / change the value
3 Function is selected Decrease / change the value Key3
4 Except in the Exit OSD menu Jump one menu level back
(settings are retained)
Key4
In the Exit OSD menu Return to main menu
(settings are retained)
