Chapter 7 Page no. 748
JC-ELE-A-043.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A043 - AWS Monitor Calibration
8-5 Move the OSD to a Convenient Position on 19" Monitors
It may be desirable to move the OSD display toward the upper part of the screen to fully observe the fol-
lowing squares of the SMPTE pattern:
• central white level square
• central black level square
• 5% / 0% grey level square
• 95% / 100% grey level square

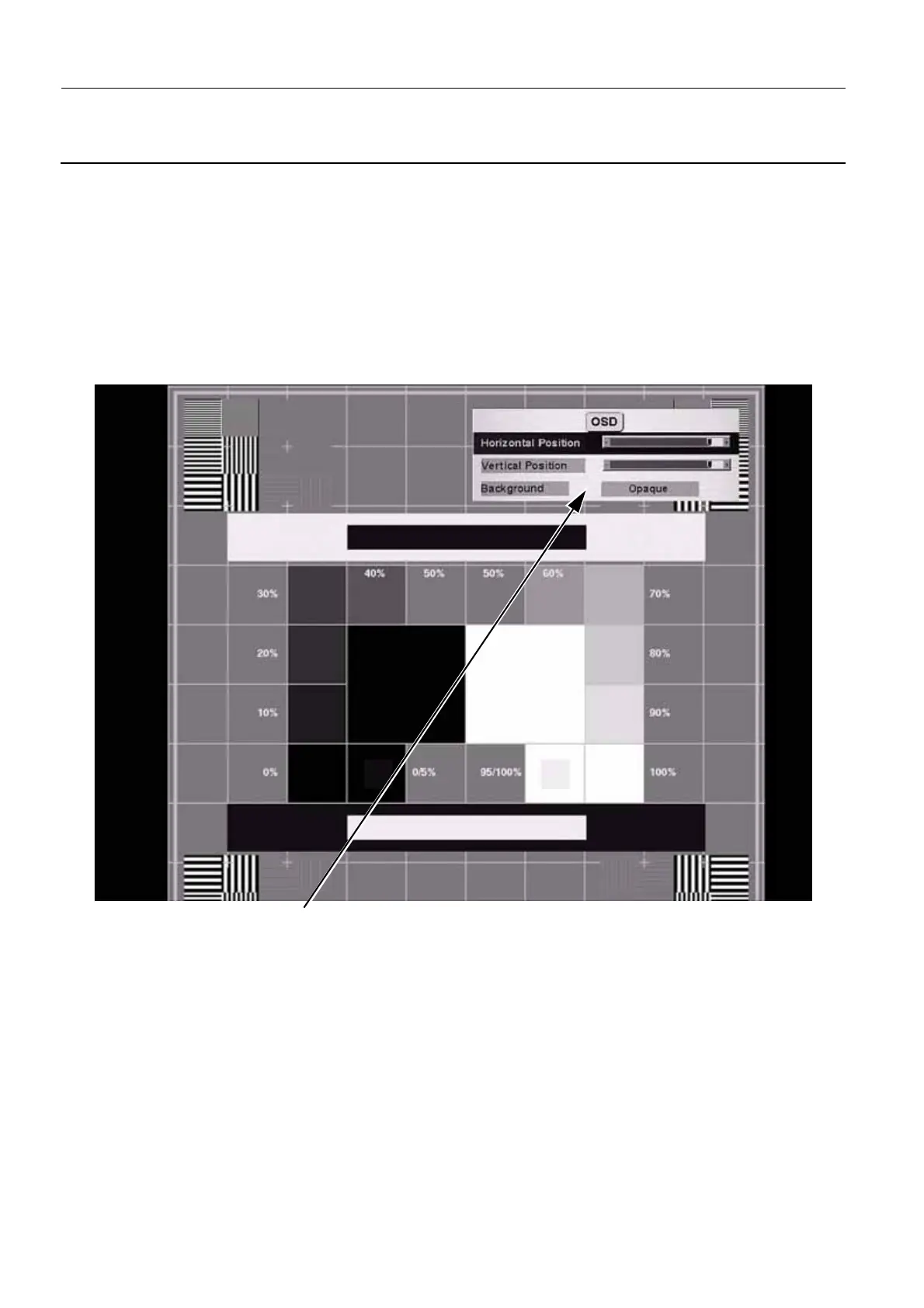

The image below represents a good example of OSD menu position with respect to the SMPTE pattern
displayed.
1. If the OSD main menu is already in a good position, go to step 5.
2. Press the Key1 button to access the OSD main menu, then keep pressing the Key1 button until OSD
The OSD menu does not cover the central white level
square used to do the monitor contrast, brightness or
backlight adjustment.
