Job Card ELE A043 - AWS Monitor Calibration
8-3 Preliminary Configuration Checks for 19" Monitors
1. Unlock the OSD (see section 8-2) and move the OSD to a convenient position (see section 8-5) if
necessary.
2. Press the Key1 button to access the OSD main menu, then keep pressing the Key1 button until Ser-
vice level 2 is selected.

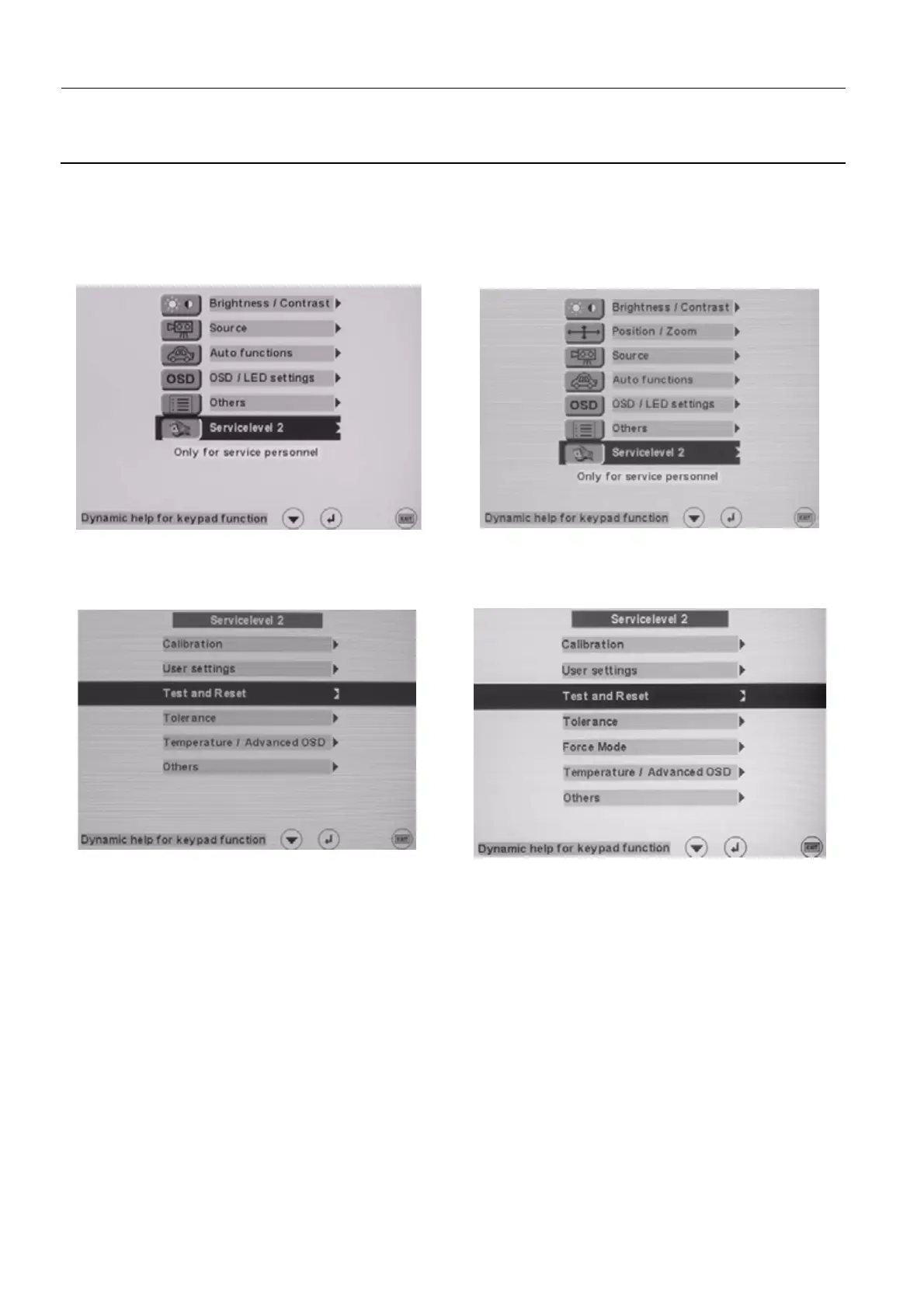

3. Press the Key2 button once, then immediately press and hold the Key3 button until the Service level
2 menu re-appears as shown below.
4. From the Service level 2 menu, keep pressing the Key1 button until Test and Reset is selected, and
With monitor connected via DVI (V3/V4 CS)
With monitor connected via BNC (V1/V2 CS)
With monitor connected via DVI (V3/V4 CS)
With monitor connected via BNC (V1/V2 CS)
To Next Page
